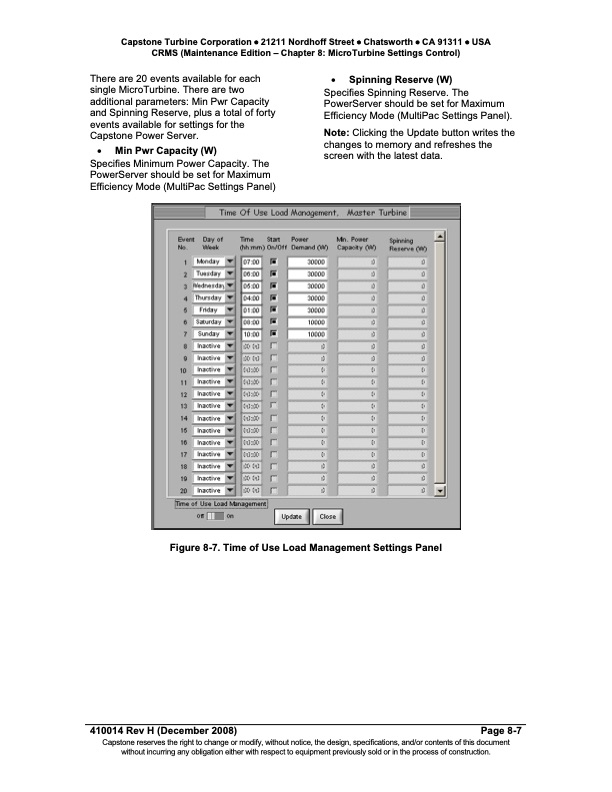

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 8: MicroTurbine Settings Control) There are 20 events available for each single MicroTurbine. There are two additional parameters: Min Pwr Capacity and Spinning Reserve, plus a total of forty events available for settings for the Capstone Power Server. Min Pwr Capacity (W) Specifies Minimum Power Capacity. The PowerServer should be set for Maximum Efficiency Mode (MultiPac Settings Panel) Spinning Reserve (W) Specifies Spinning Reserve. The PowerServer should be set for Maximum Efficiency Mode (MultiPac Settings Panel). Note: Clicking the Update button writes the changes to memory and refreshes the screen with the latest data. 410014 Rev H (December 2008) Page 8-7 Figure 8-7. Time of Use Load Management Settings Panel Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
