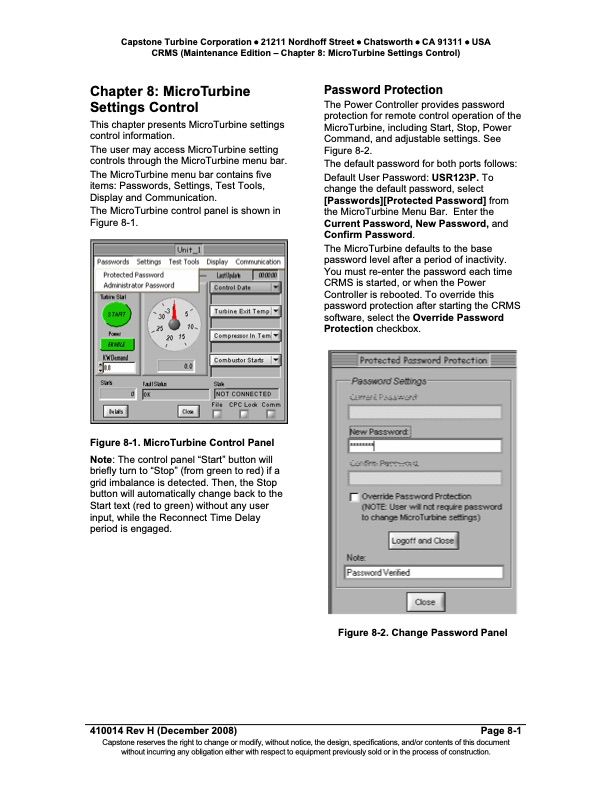

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 8: MicroTurbine Settings Control) Chapter 8: MicroTurbine Settings Control This chapter presents MicroTurbine settings control information. The user may access MicroTurbine setting controls through the MicroTurbine menu bar. The MicroTurbine menu bar contains five items: Passwords, Settings, Test Tools, Display and Communication. The MicroTurbine control panel is shown in Figure 8-1. Figure 8-1. MicroTurbine Control Panel Note: The control panel “Start” button will briefly turn to “Stop” (from green to red) if a grid imbalance is detected. Then, the Stop button will automatically change back to the Start text (red to green) without any user input, while the Reconnect Time Delay period is engaged. Password Protection The Power Controller provides password protection for remote control operation of the MicroTurbine, including Start, Stop, Power Command, and adjustable settings. See Figure 8-2. The default password for both ports follows: Default User Password: USR123P. To change the default password, select [Passwords][Protected Password] from the MicroTurbine Menu Bar. Enter the Current Password, New Password, and Confirm Password. The MicroTurbine defaults to the base password level after a period of inactivity. You must re-enter the password each time CRMS is started, or when the Power Controller is rebooted. To override this password protection after starting the CRMS software, select the Override Password Protection checkbox. Figure 8-2. Change Password Panel Page 8-1 410014 Rev H (December 2008) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
