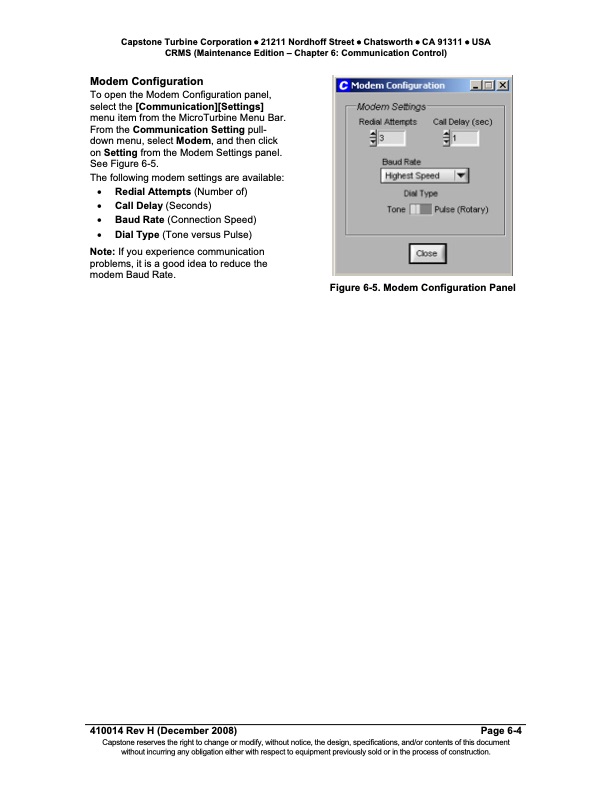

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 6: Communication Control) Modem Configuration To open the Modem Configuration panel, select the [Communication][Settings] menu item from the MicroTurbine Menu Bar. From the Communication Setting pull- down menu, select Modem, and then click on Setting from the Modem Settings panel. See Figure 6-5. The following modem settings are available: Redial Attempts (Number of) Call Delay (Seconds) Baud Rate (Connection Speed) Dial Type (Tone versus Pulse) Note: If you experience communication problems, it is a good idea to reduce the modem Baud Rate. 410014 Rev H (December 2008) Page 6-4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Figure 6-5. Modem Configuration PanelPDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
