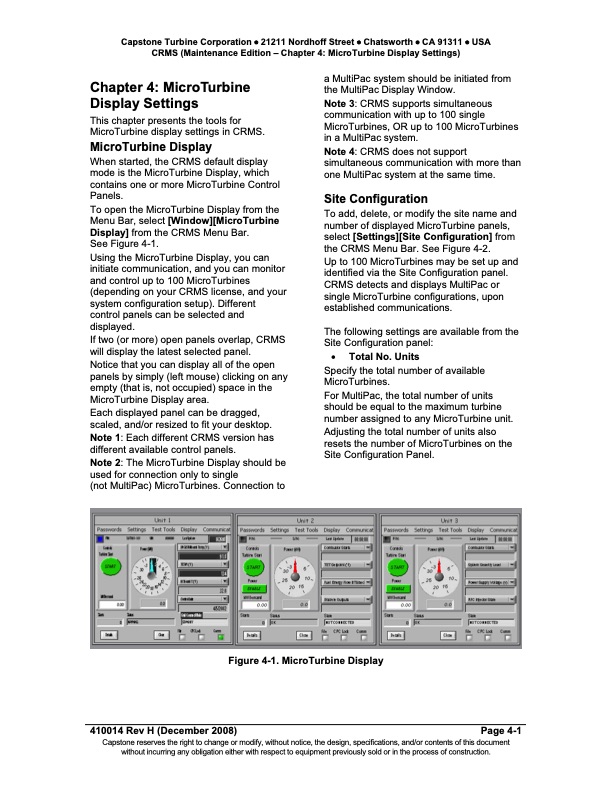

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (Maintenance Edition – Chapter 4: MicroTurbine Display Settings) Chapter 4: MicroTurbine Display Settings This chapter presents the tools for MicroTurbine display settings in CRMS. MicroTurbine Display When started, the CRMS default display mode is the MicroTurbine Display, which contains one or more MicroTurbine Control Panels. To open the MicroTurbine Display from the Menu Bar, select [Window][MicroTurbine Display] from the CRMS Menu Bar. See Figure 4-1. Using the MicroTurbine Display, you can initiate communication, and you can monitor and control up to 100 MicroTurbines (depending on your CRMS license, and your system configuration setup). Different control panels can be selected and displayed. If two (or more) open panels overlap, CRMS will display the latest selected panel. Notice that you can display all of the open panels by simply (left mouse) clicking on any empty (that is, not occupied) space in the MicroTurbine Display area. Each displayed panel can be dragged, scaled, and/or resized to fit your desktop. Note 1: Each different CRMS version has different available control panels. Note 2: The MicroTurbine Display should be used for connection only to single (not MultiPac) MicroTurbines. Connection to a MultiPac system should be initiated from the MultiPac Display Window. Note 3: CRMS supports simultaneous communication with up to 100 single MicroTurbines, OR up to 100 MicroTurbines in a MultiPac system. Note 4: CRMS does not support simultaneous communication with more than one MultiPac system at the same time. Site Configuration To add, delete, or modify the site name and number of displayed MicroTurbine panels, select [Settings][Site Configuration] from the CRMS Menu Bar. See Figure 4-2. Up to 100 MicroTurbines may be set up and identified via the Site Configuration panel. CRMS detects and displays MultiPac or single MicroTurbine configurations, upon established communications. The following settings are available from the Site Configuration panel: Total No. Units Specify the total number of available MicroTurbines. For MultiPac, the total number of units should be equal to the maximum turbine number assigned to any MicroTurbine unit. Adjusting the total number of units also resets the number of MicroTurbines on the Site Configuration Panel. Figure 4-1. MicroTurbine Display 410014 Rev H (December 2008) Page 4-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (Maintenance Edition)
