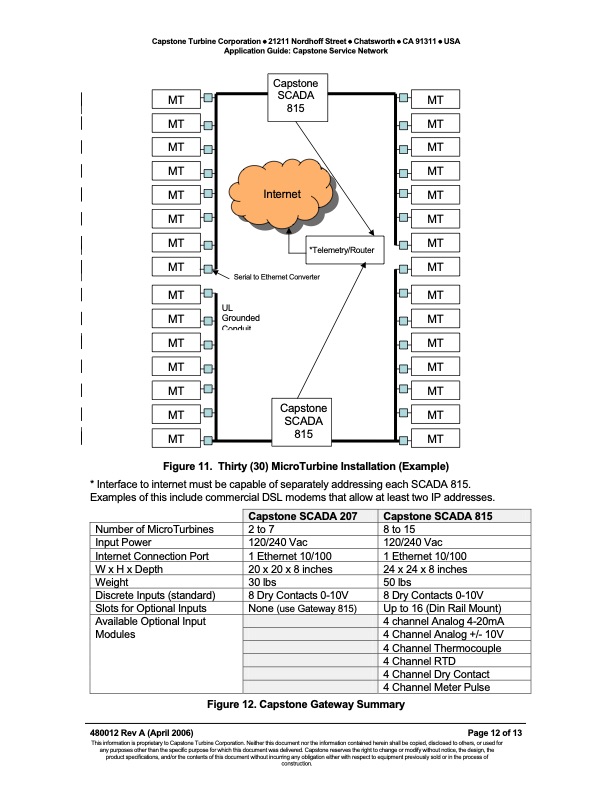

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone Service Network Capstone SCADA 815 MT MT MT MT MT Internet Serial to Ethernet Converter UL Grounded Conduit MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT Figure 11. Thirty (30) MicroTurbine Installation (Example) * Interface to internet must be capable of separately addressing each SCADA 815. Examples of this include commercial DSL modems that allow at least two IP addresses. Capstone SCADA 207 Capstone SCADA 815 Number of MicroTurbines Input Power Internet Connection Port WxHxDepth Weight Discrete Inputs (standard) Slots for Optional Inputs Available Optional Input Modules 2 to 7 120/240 Vac 1 Ethernet 10/100 20x20x8inches 30 lbs 8 Dry Contacts 0-10V None (use Gateway 815) 8 to 15 120/240 Vac 1 Ethernet 10/100 24x24x8inches 50 lbs 8 Dry Contacts 0-10V Up to 16 (Din Rail Mount) 4 channel Analog 4-20mA 4 Channel Analog +/- 10V 4 Channel Thermocouple 4 Channel RTD 4 Channel Dry Contact 4 Channel Meter Pulse Figure 12. Capstone Gateway Summary 480012 Rev A (April 2006) Page 12 of 13 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. *Telemetry/Router MT MT MT MT MT Capstone SCADA 815 MT MTPDF Image | Application Guide Capstone Gateway
