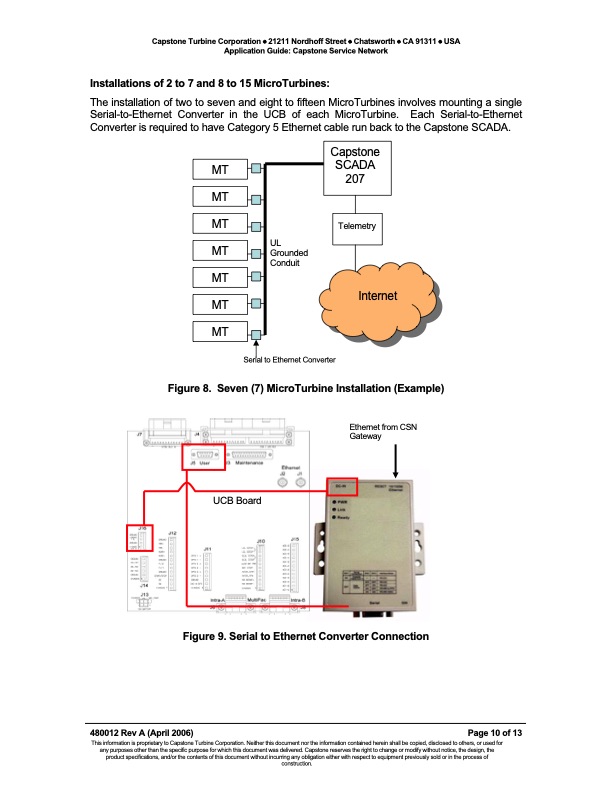

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone Service Network Installations of 2 to 7 and 8 to 15 MicroTurbines: The installation of two to seven and eight to fifteen MicroTurbines involves mounting a single Serial-to-Ethernet Converter in the UCB of each MicroTurbine. Each Serial-to-Ethernet Converter is required to have Category 5 Ethernet cable run back to the Capstone SCADA. UL Grounded Conduit Serial to Ethernet Converter Internet Figure 8. Seven (7) MicroTurbine Installation (Example) Ethernet from CSN Gateway UCB Board Figure 9. Serial to Ethernet Converter Connection 480012 Rev A (April 2006) Page 10 of 13 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone SCADA 207 MT MT MT MT MT MT MT TelemetryPDF Image | Application Guide Capstone Gateway
