PDF Publication Title:
Text from PDF Page: 003

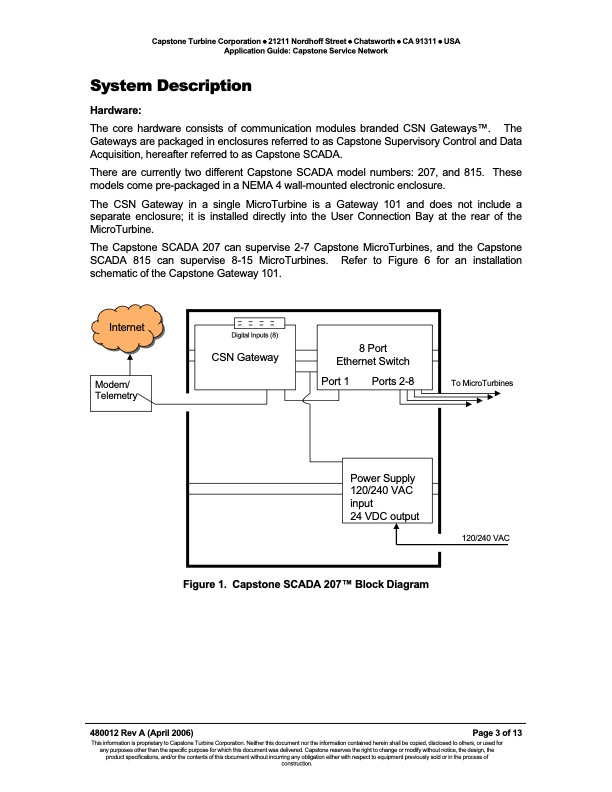

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone Service Network System Description Hardware: The core hardware consists of communication modules branded CSN GatewaysTM. The Gateways are packaged in enclosures referred to as Capstone Supervisory Control and Data Acquisition, hereafter referred to as Capstone SCADA. There are currently two different Capstone SCADA model numbers: 207, and 815. These models come pre-packaged in a NEMA 4 wall-mounted electronic enclosure. The CSN Gateway in a single MicroTurbine is a Gateway 101 and does not include a separate enclosure; it is installed directly into the User Connection Bay at the rear of the MicroTurbine. The Capstone SCADA 207 can supervise 2-7 Capstone MicroTurbines, and the Capstone SCADA 815 can supervise 8-15 MicroTurbines. Refer to Figure 6 for an installation schematic of the Capstone Gateway 101. Internet Modem/ Telemetry To MicroTurbines Digital Inputs (8) CSN Gateway 8 Port Ethernet Switch Port 1 Ports 2-8 Power Supply 120/240 VAC input 24 VDC output 480012 Rev A (April 2006) Page 3 of 13 Figure 1. Capstone SCADA 207TM Block Diagram 120/240 VAC This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Capstone Gateway
