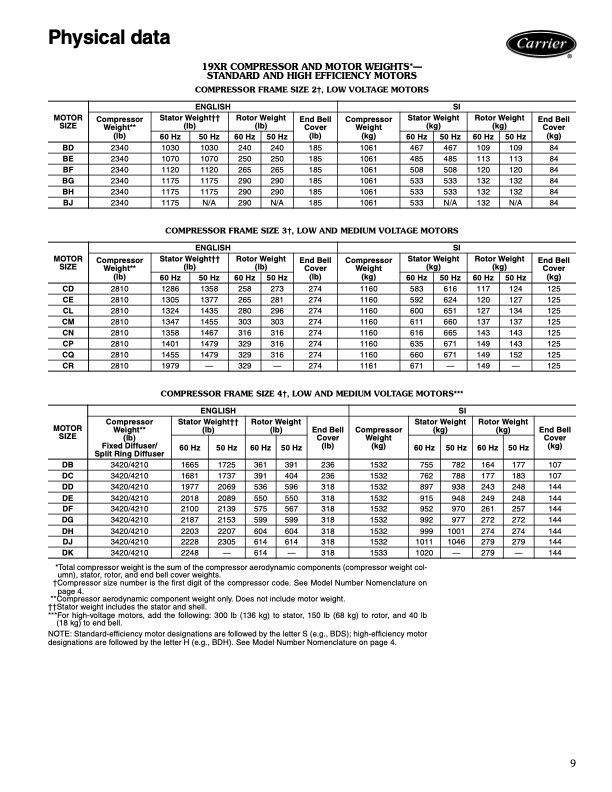

Physical data 19XR COMPRESSOR AND MOTOR WEIGHTS*— STANDARD AND HIGH EFFICIENCY MOTORS COMPRESSOR FRAME SIZE 2†, LOW VOLTAGE MOTORS Compressor Weight** (lb) 2340 2340 2340 2340 2340 2340 Stator Weight†† (lb) 60 Hz 1030 1070 1120 1175 1175 1175 ENGLISH 50 Hz 1030 1070 1120 1175 1175 N/A Rotor Weight (lb) 60 Hz 240 250 265 290 290 290 50 Hz 240 250 265 290 290 N/A End Bell Cover (lb) 185 185 185 185 185 185 Compressor Weight (kg) 1061 1061 1061 1061 1061 1061 Stator Weight (kg) 60 Hz 467 485 508 533 533 533 50 Hz 467 485 508 533 533 N/A Rotor Weight (kg) 60 Hz 109 113 120 132 132 132 50 Hz 109 113 120 132 132 N/A SI MOTOR SIZE End Bell Cover (kg) BD 84 BE 84 BF 84 BG 84 BH 84 BJ 84 COMPRESSOR FRAME SIZE 3†, LOW AND MEDIUM VOLTAGE MOTORS SI Compressor Weight** (lb) 2810 2810 2810 2810 2810 2810 2810 2810 Stator Weight†† (lb) 60 Hz 1286 1305 1324 1347 1358 1401 1455 1979 ENGLISH 50 Hz 1358 1377 1435 1455 1467 1479 1479 — Rotor Weight (lb) 60 Hz 258 265 280 303 316 329 329 329 50 Hz 273 281 296 303 316 316 316 — End Bell Cover (lb) 274 274 274 274 274 274 274 274 Compressor Weight (kg) 1160 1160 1160 1160 1160 1160 1160 1161 Stator Weight (kg) 60 Hz 583 592 600 611 616 635 660 671 50 Hz 616 624 651 660 665 671 671 — Rotor Weight (kg) 60 Hz 117 120 127 137 143 149 149 149 50 Hz 124 127 134 137 143 143 152 — MOTOR SIZE End Bell Cover (kg) CD 125 CE 125 CL 125 CM 125 CN 125 CP 125 CQ 125 CR 125 COMPRESSOR FRAME SIZE 4†, LOW AND MEDIUM VOLTAGE MOTORS*** SI Compressor Weight** (lb) Fixed Diffuser/ Split Ring Diffuser 3420/4210 3420/4210 3420/4210 3420/4210 3420/4210 3420/4210 3420/4210 3420/4210 3420/4210 60 Hz 1665 1681 1977 2018 2100 2187 2203 2228 2248 ENGLISH Stator Weight†† (lb) 50 Hz 1725 1737 2069 2089 2139 2153 2207 2305 — Rotor Weight (lb) 60 Hz 361 391 536 550 575 599 604 614 614 50 Hz 391 404 596 550 567 599 604 614 — End Bell Cover (lb) 236 236 318 318 318 318 318 318 318 Compressor Weight (kg) 1532 1532 1532 1532 1532 1532 1532 1532 1533 Stator Weight (kg) 60 Hz 755 762 897 915 952 992 999 1011 1020 50 Hz 782 788 938 948 970 977 1001 1046 — Rotor Weight (kg) 60 Hz 164 177 243 249 261 272 274 279 279 50 Hz 177 183 248 248 257 272 274 279 — MOTOR SIZE DB DC DD DE DF DG DH DJ DK End Bell Cover (kg) 107 107 144 144 144 144 144 144 144 *Total compressor weight is the sum of the compressor aerodynamic components (compressor weight col- umn), stator, rotor, and end bell cover weights. †Compressor size number is the first digit of the compressor code. See Model Number Nomenclature on page 4. **Compressor aerodynamic component weight only. Does not include motor weight. ††Stator weight includes the stator and shell. ***For high-voltage motors, add the following: 300 lb (136 kg) to stator, 150 lb (68 kg) to rotor, and 40 lb (18 kg) to end bell. NOTE: Standard-efficiency motor designations are followed by the letter S (e.g., BDS); high-efficiency motor designations are followed by the letter H (e.g., BDH). See Model Number Nomenclature on page 4. 9PDF Image | Carrier Product Data 19XR,XRV High-Efficiency Hermetic Centrifugal Liquid Chiller 50/60 Hz HFC-134a 19XR — 200 to 1500 Nominal Tons (703 to 5275 kW) 19XRV — 200 to 800 Nominal Tons (703 to 2813 kW)
PDF Search Title:
Carrier Product Data 19XR,XRV High-Efficiency Hermetic Centrifugal Liquid Chiller 50/60 Hz HFC-134a 19XR — 200 to 1500 Nominal Tons (703 to 5275 kW) 19XRV — 200 to 800 Nominal Tons (703 to 2813 kW)Original File Name Searched:
