Text from PDF Page: 007

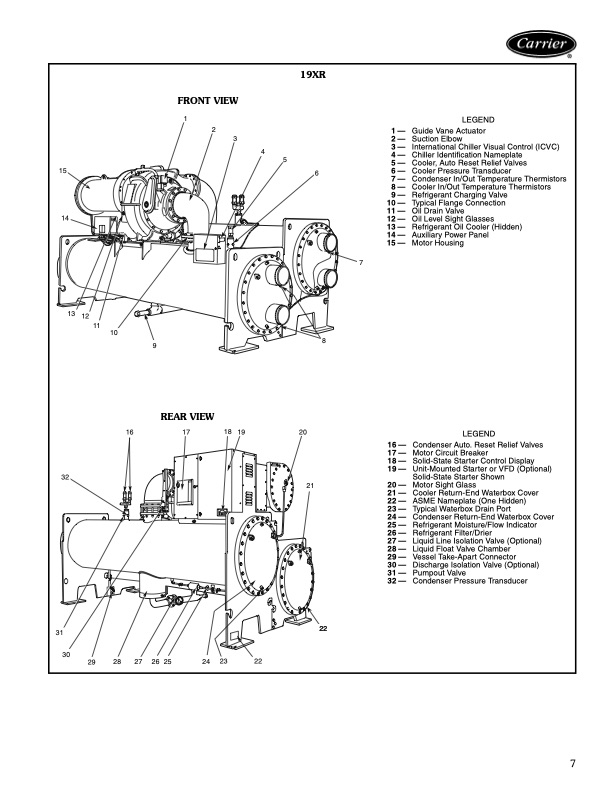

14 13 12 11 7 32 31 30 22 10 16 REAR VIEW 17 18 19 20 LEGEND 16— Condenser Auto. Reset Relief Valves 17— Motor Circuit Breaker 18— Solid-State Starter Control Display 19— Unit-Mounted Starter or VFD (Optional) Solid-State Starter Shown 20— Motor Sight Glass 21— Cooler Return-End Waterbox Cover 22— ASME Nameplate (One Hidden) 23— Typical Waterbox Drain Port 24— Condenser Return-End Waterbox Cover 25— Refrigerant Moisture/Flow Indicator 26— Refrigerant Filter/Drier 27— Liquid Line Isolation Valve (Optional) 28— Liquid Float Valve Chamber 29— Vessel Take-Apart Connector 30— Discharge Isolation Valve (Optional) 31— Pumpout Valve 32— Condenser Pressure Transducer 9 8 2928272625 2423 22 FRONT VIEW 1 LEGEND 1— Guide Vane Actuator 2— Suction Elbow 3— International Chiller Visual Control (ICVC) 4— Chiller Identification Nameplate 5— Cooler, Auto Reset Relief Valves 6— Cooler Pressure Transducer 7— Condenser In/Out Temperature Thermistors 8— Cooler In/Out Temperature Thermistors 9— Refrigerant Charging Valve 10— Typical Flange Connection 11— Oil Drain Valve 12— Oil Level Sight Glasses 13— Refrigerant Oil Cooler (Hidden) 14— Auxiliary Power Panel 15— Motor Housing 15 6 2 3 4 5 19XR 21 7PDF Image | Carrier Product Data 19XR,XRV High-Efficiency Hermetic Centrifugal Liquid Chiller 50/60 Hz HFC-134a 19XR — 200 to 1500 Nominal Tons (703 to 5275 kW) 19XRV — 200 to 800 Nominal Tons (703 to 2813 kW)
PDF Search Title:
Carrier Product Data 19XR,XRV High-Efficiency Hermetic Centrifugal Liquid Chiller 50/60 Hz HFC-134a 19XR — 200 to 1500 Nominal Tons (703 to 5275 kW) 19XRV — 200 to 800 Nominal Tons (703 to 2813 kW)Original File Name Searched:
