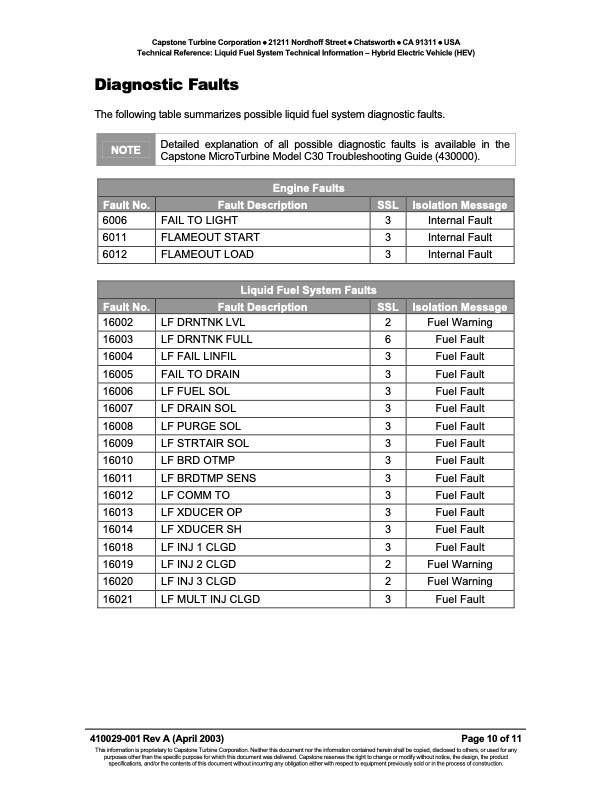

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Liquid Fuel System Technical Information – Hybrid Electric Vehicle (HEV) Diagnostic Faults The following table summarizes possible liquid fuel system diagnostic faults. Detailed explanation of all possible diagnostic faults is available in the Capstone MicroTurbine Model C30 Troubleshooting Guide (430000). NOTE Engine Faults Fault No. Fault Description SSL Isolation Message 6006 FAIL TO LIGHT 6011 FLAMEOUT START 6012 FLAMEOUT LOAD 16002 LF DRNTNK LVL 16003 LF DRNTNK FULL 16004 LF FAIL LINFIL 16005 FAIL TO DRAIN 16006 LF FUEL SOL 16007 LF DRAIN SOL 16008 LF PURGE SOL 16009 LF STRTAIR SOL 16010 LF BRD OTMP 16011 LF BRDTMP SENS 16012 LF COMM TO 16013 LF XDUCER OP 16014 LF XDUCER SH 16018 LF INJ 1 CLGD 16019 LF INJ 2 CLGD 16020 LF INJ 3 CLGD 16021 LF MULT INJ CLGD 3 3 3 2 6 3 3 3 3 3 3 3 3 3 3 3 3 2 2 3 Internal Fault Internal Fault Internal Fault Fuel Warning Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Fault Fuel Warning Fuel Warning Fuel Fault Liquid Fuel System Faults Fault No. Fault Description SSL Isolation Message 410029-001 Rev A (April 2003) Page 10 of 11 shall be copied, disclosed to others, or used for any This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Liquid Fuel System Technical Information – Hybrid Electric Vehicle (HEV)
