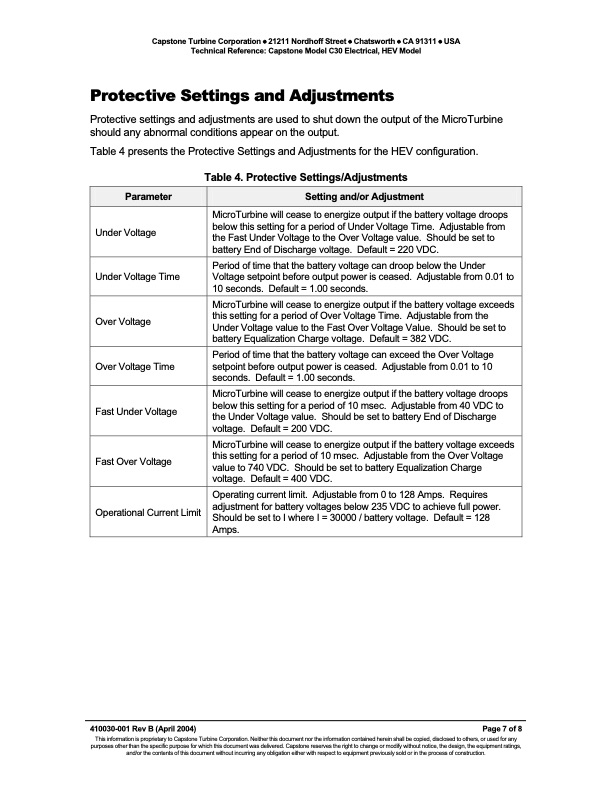

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Model C30 Electrical, HEV Model Protective Settings and Adjustments Protective settings and adjustments are used to shut down the output of the MicroTurbine should any abnormal conditions appear on the output. Table 4 presents the Protective Settings and Adjustments for the HEV configuration. Parameter Setting and/or Adjustment Under Voltage MicroTurbine will cease to energize output if the battery voltage droops below this setting for a period of Under Voltage Time. Adjustable from the Fast Under Voltage to the Over Voltage value. Should be set to battery End of Discharge voltage. Default = 220 VDC. Under Voltage Time Over Voltage Time Table 4. Protective Settings/Adjustments Period of time that the battery voltage can droop below the Under Voltage setpoint before output power is ceased. Adjustable from 0.01 to 10 seconds. Default = 1.00 seconds. Period of time that the battery voltage can exceed the Over Voltage setpoint before output power is ceased. Adjustable from 0.01 to 10 seconds. Default = 1.00 seconds. Over Voltage MicroTurbine will cease to energize output if the battery voltage exceeds this setting for a period of Over Voltage Time. Adjustable from the Under Voltage value to the Fast Over Voltage Value. Should be set to battery Equalization Charge voltage. Default = 382 VDC. Fast Under Voltage MicroTurbine will cease to energize output if the battery voltage droops below this setting for a period of 10 msec. Adjustable from 40 VDC to the Under Voltage value. Should be set to battery End of Discharge voltage. Default = 200 VDC. Fast Over Voltage MicroTurbine will cease to energize output if the battery voltage exceeds this setting for a period of 10 msec. Adjustable from the Over Voltage value to 740 VDC. Should be set to battery Equalization Charge voltage. Default = 400 VDC. Operational Current Limit Operating current limit. Adjustable from 0 to 128 Amps. Requires adjustment for battery voltages below 235 VDC to achieve full power. Should be set to I where I = 30000 / battery voltage. Default = 128 Amps. 410030-001 Rev B (April 2004) Page 7 of 8 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C30 Electrical, HEV Model
