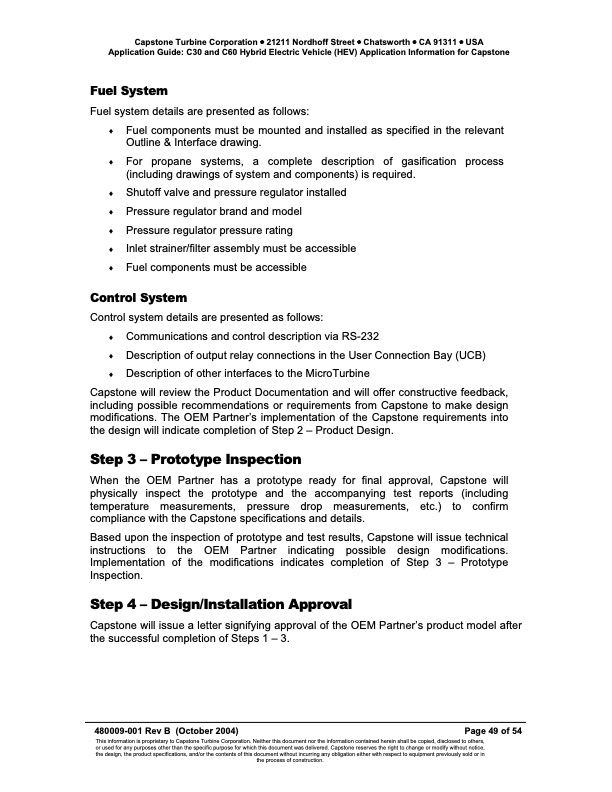

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Fuel System Fuel system details are presented as follows: ♦ Fuel components must be mounted and installed as specified in the relevant Outline & Interface drawing. ♦ For propane systems, a complete description of gasification process (including drawings of system and components) is required. ♦ Shutoff valve and pressure regulator installed ♦ Pressure regulator brand and model ♦ Pressure regulator pressure rating ♦ Inlet strainer/filter assembly must be accessible ♦ Fuel components must be accessible Control System Control system details are presented as follows: ♦ Communications and control description via RS-232 ♦ Description of output relay connections in the User Connection Bay (UCB) ♦ Description of other interfaces to the MicroTurbine Capstone will review the Product Documentation and will offer constructive feedback, including possible recommendations or requirements from Capstone to make design modifications. The OEM Partnerís implementation of the Capstone requirements into the design will indicate completion of Step 2 ñ Product Design. Step 3 – Prototype Inspection When the OEM Partner has a prototype ready for final approval, Capstone will physically inspect the prototype and the accompanying test reports (including temperature measurements, pressure drop measurements, etc.) to confirm compliance with the Capstone specifications and details. Based upon the inspection of prototype and test results, Capstone will issue technical instructions to the OEM Partner indicating possible design modifications. Implementation of the modifications indicates completion of Step 3 ñ Prototype Inspection. Step 4 – Design/Installation Approval Capstone will issue a letter signifying approval of the OEM Partnerís product model after the successful completion of Steps 1 ñ 3. 480009-001 Rev B (October 2004) Page 49 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
