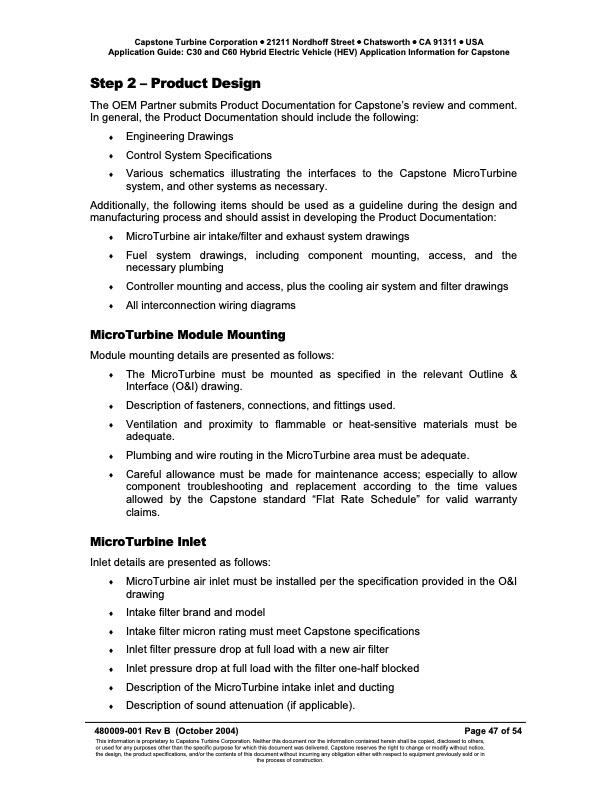

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Step 2 – Product Design The OEM Partner submits Product Documentation for Capstoneís review and comment. In general, the Product Documentation should include the following: ♦ Engineering Drawings ♦ Control System Specifications ♦ Various schematics illustrating the interfaces to the Capstone MicroTurbine system, and other systems as necessary. Additionally, the following items should be used as a guideline during the design and manufacturing process and should assist in developing the Product Documentation: ♦ MicroTurbine air intake/filter and exhaust system drawings ♦ Fuel system drawings, including component mounting, access, and the necessary plumbing ♦ Controller mounting and access, plus the cooling air system and filter drawings ♦ All interconnection wiring diagrams MicroTurbine Module Mounting Module mounting details are presented as follows: ♦ The MicroTurbine must be mounted as specified in the relevant Outline & Interface (O&I) drawing. ♦ Description of fasteners, connections, and fittings used. ♦ Ventilation and proximity to flammable or heat-sensitive materials must be adequate. ♦ Plumbing and wire routing in the MicroTurbine area must be adequate. ♦ Careful allowance must be made for maintenance access; especially to allow component troubleshooting and replacement according to the time values allowed by the Capstone standard ìFlat Rate Scheduleî for valid warranty claims. MicroTurbine Inlet Inlet details are presented as follows: ♦ MicroTurbine air inlet must be installed per the specification provided in the O&I drawing ♦ Intake filter brand and model ♦ Intake filter micron rating must meet Capstone specifications ♦ Inlet filter pressure drop at full load with a new air filter ♦ Inlet pressure drop at full load with the filter one-half blocked ♦ Description of the MicroTurbine intake inlet and ducting ♦ Description of sound attenuation (if applicable). 480009-001 Rev B (October 2004) Page 47 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
