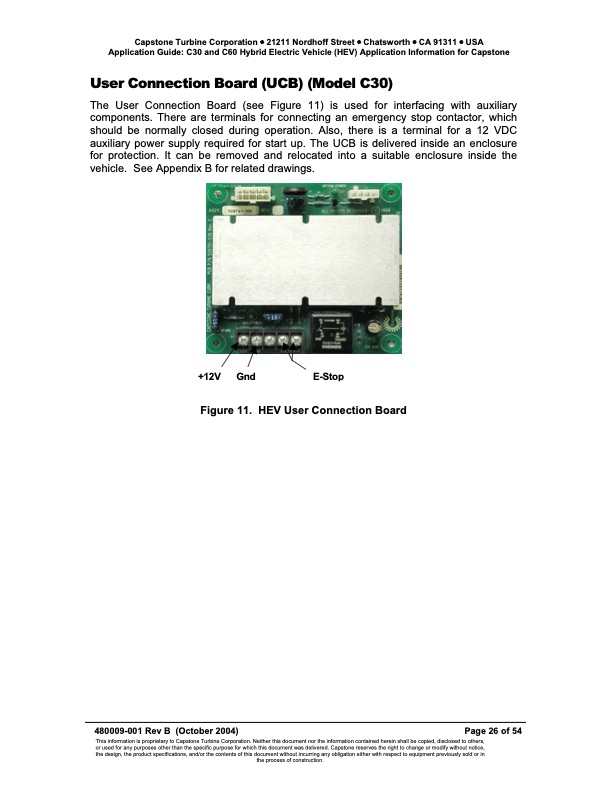

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone User Connection Board (UCB) (Model C30) The User Connection Board (see Figure 11) is used for interfacing with auxiliary components. There are terminals for connecting an emergency stop contactor, which should be normally closed during operation. Also, there is a terminal for a 12 VDC auxiliary power supply required for start up. The UCB is delivered inside an enclosure for protection. It can be removed and relocated into a suitable enclosure inside the vehicle. See Appendix B for related drawings. +12V Gnd E-Stop Figure 11. HEV User Connection Board 480009-001 Rev B (October 2004) Page 26 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
