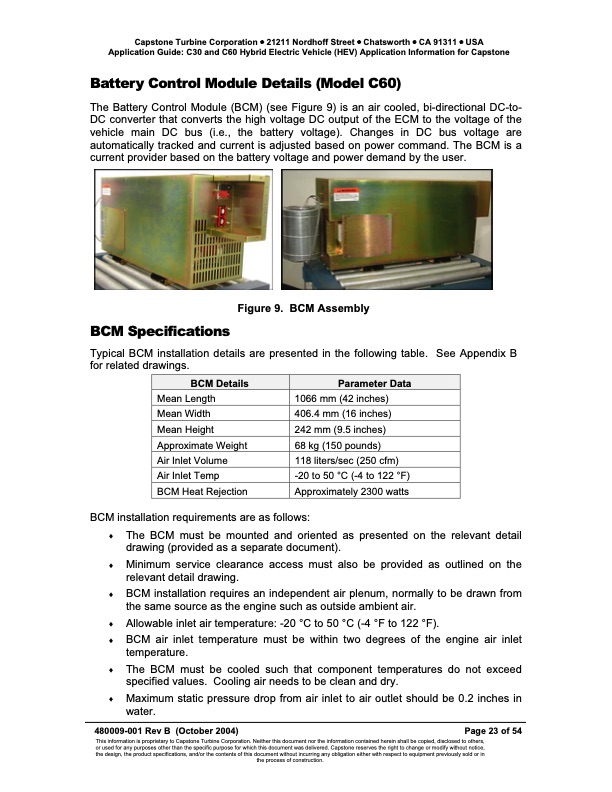

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Battery Control Module Details (Model C60) The Battery Control Module (BCM) (see Figure 9) is an air cooled, bi-directional DC-to- DC converter that converts the high voltage DC output of the ECM to the voltage of the vehicle main DC bus (i.e., the battery voltage). Changes in DC bus voltage are automatically tracked and current is adjusted based on power command. The BCM is a current provider based on the battery voltage and power demand by the user. Figure 9. BCM Assembly BCM Specifications Typical BCM installation details are presented in the following table. See Appendix B for related drawings. BCM Details Parameter Data Mean Length Mean Width Mean Height Approximate Weight Air Inlet Volume Air Inlet Temp BCM Heat Rejection 1066 mm (42 inches) 406.4 mm (16 inches) 242 mm (9.5 inches) 68 kg (150 pounds) 118 liters/sec (250 cfm) -20 to 50 °C (-4 to 122 °F) Approximately 2300 watts BCM installation requirements are as follows: ♦ The BCM must be mounted and oriented as presented on the relevant detail drawing (provided as a separate document). ♦ Minimum service clearance access must also be provided as outlined on the relevant detail drawing. ♦ BCM installation requires an independent air plenum, normally to be drawn from the same source as the engine such as outside ambient air. ♦ Allowable inlet air temperature: -20 °C to 50 °C (-4 °F to 122 °F). ♦ BCM air inlet temperature must be within two degrees of the engine air inlet temperature. ♦ The BCM must be cooled such that component temperatures do not exceed specified values. Cooling air needs to be clean and dry. ♦ Maximum static pressure drop from air inlet to air outlet should be 0.2 inches in water. 480009-001 Rev B (October 2004) Page 23 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
