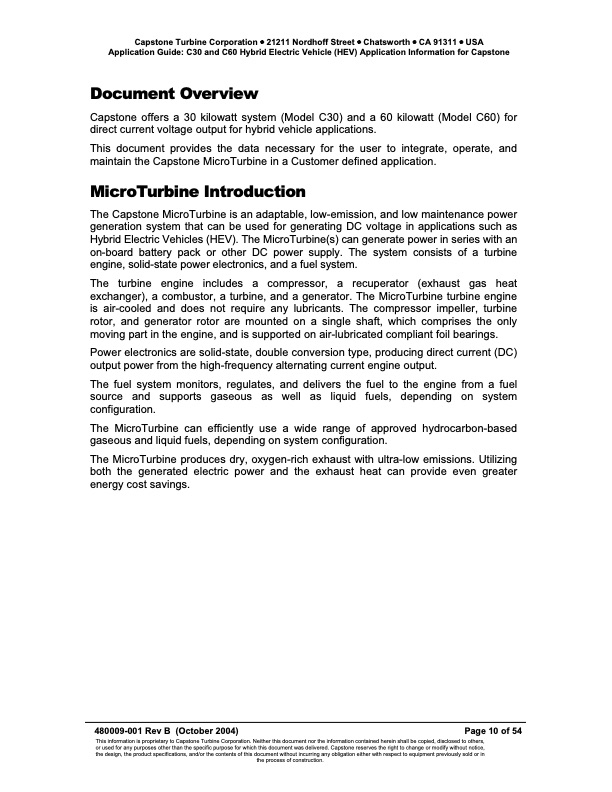

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: C30 and C60 Hybrid Electric Vehicle (HEV) Application Information for Capstone Document Overview Capstone offers a 30 kilowatt system (Model C30) and a 60 kilowatt (Model C60) for direct current voltage output for hybrid vehicle applications. This document provides the data necessary for the user to integrate, operate, and maintain the Capstone MicroTurbine in a Customer defined application. MicroTurbine Introduction The Capstone MicroTurbine is an adaptable, low-emission, and low maintenance power generation system that can be used for generating DC voltage in applications such as Hybrid Electric Vehicles (HEV). The MicroTurbine(s) can generate power in series with an on-board battery pack or other DC power supply. The system consists of a turbine engine, solid-state power electronics, and a fuel system. The turbine engine includes a compressor, a recuperator (exhaust gas heat exchanger), a combustor, a turbine, and a generator. The MicroTurbine turbine engine is air-cooled and does not require any lubricants. The compressor impeller, turbine rotor, and generator rotor are mounted on a single shaft, which comprises the only moving part in the engine, and is supported on air-lubricated compliant foil bearings. Power electronics are solid-state, double conversion type, producing direct current (DC) output power from the high-frequency alternating current engine output. The fuel system monitors, regulates, and delivers the fuel to the engine from a fuel source and supports gaseous as well as liquid fuels, depending on system configuration. The MicroTurbine can efficiently use a wide range of approved hydrocarbon-based gaseous and liquid fuels, depending on system configuration. The MicroTurbine produces dry, oxygen-rich exhaust with ultra-low emissions. Utilizing both the generated electric power and the exhaust heat can provide even greater energy cost savings. 480009-001 Rev B (October 2004) Page 10 of 54 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Model C30 and C60 HEV Application Information
