PDF Publication Title:
Text from PDF Page: 029

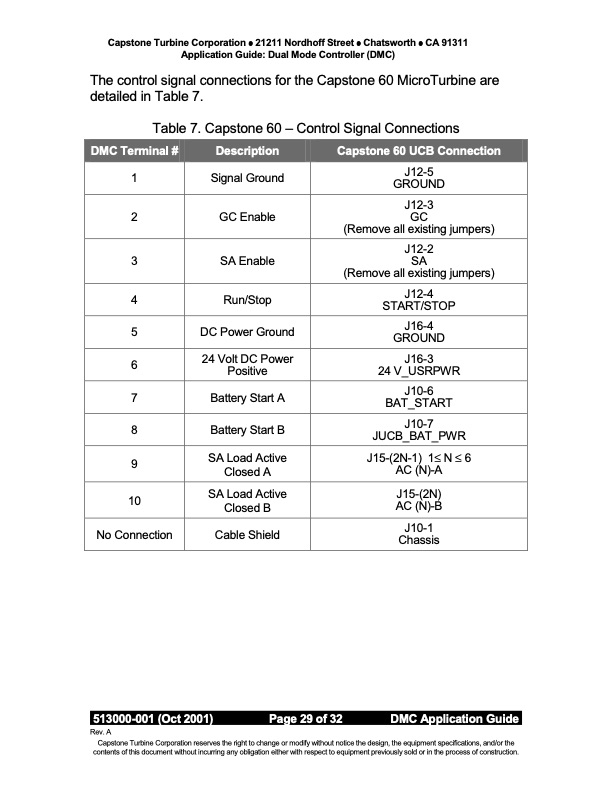

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Application Guide: Dual Mode Controller (DMC) The control signal connections for the Capstone 60 MicroTurbine are detailed in Table 7. Table 7. Capstone 60 – Control Signal Connections DMC Terminal # Description Capstone 60 UCB Connection 1 4 5 6 7 8 9 10 No Connection Signal Ground Run/Stop DC Power Ground 24 Volt DC Power Positive Battery Start A Battery Start B SA Load Active Closed A SA Load Active Closed B Cable Shield J12-5 GROUND J12-4 START/STOP J16-4 GROUND J16-3 24 V_USRPWR J10-6 BAT_START J10-7 JUCB_BAT_PWR J15-(2N-1) 1≤ N ≤ 6 AC (N)-A J15-(2N) AC (N)-B J10-1 Chassis 2 GC Enable J12-3 GC (Remove all existing jumpers) 3 SA Enable J12-2 SA (Remove all existing jumpers) 513000-001 (Oct 2001) Rev. A Page 29 of 32 DMC Application Guide. Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Dual Mode Controller Application Guide
