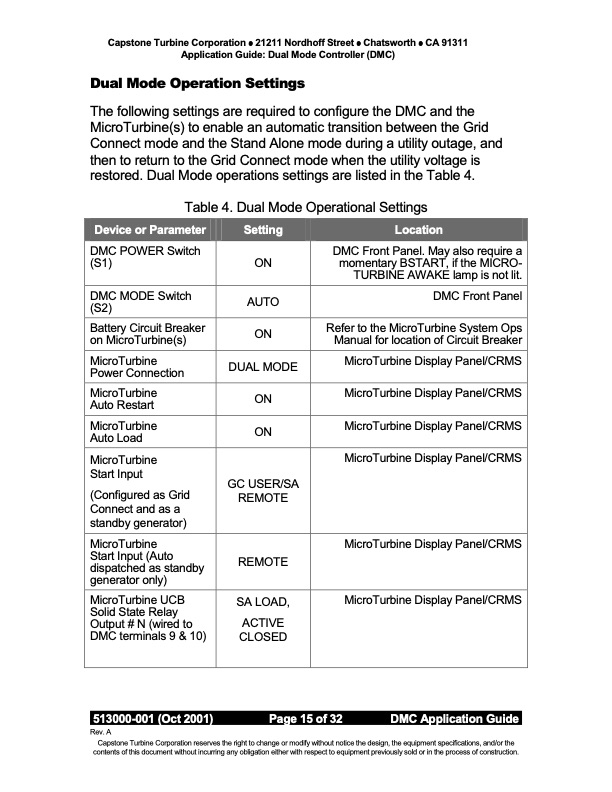

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Application Guide: Dual Mode Controller (DMC) Dual Mode Operation Settings The following settings are required to configure the DMC and the MicroTurbine(s) to enable an automatic transition between the Grid Connect mode and the Stand Alone mode during a utility outage, and then to return to the Grid Connect mode when the utility voltage is restored. Dual Mode operations settings are listed in the Table 4. Table 4. Dual Mode Operational Settings Device or Parameter Setting Location DMC POWER Switch (S1) ON DMC Front Panel. May also require a momentary BSTART, if the MICRO- TURBINE AWAKE lamp is not lit. DMC MODE Switch (S2) Battery Circuit Breaker on MicroTurbine(s) MicroTurbine Power Connection MicroTurbine Auto Restart MicroTurbine Auto Load AUTO ON DUAL MODE ON ON DMC Front Panel Refer to the MicroTurbine System Ops Manual for location of Circuit Breaker MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Display Panel/CRMS MicroTurbine Start Input (Configured as Grid Connect and as a standby generator) GC USER/SA REMOTE MicroTurbine Display Panel/CRMS MicroTurbine Start Input (Auto dispatched as standby generator only) REMOTE MicroTurbine Display Panel/CRMS MicroTurbine UCB Solid State Relay Output # N (wired to DMC terminals 9 & 10) SA LOAD, ACTIVE CLOSED MicroTurbine Display Panel/CRMS 513000-001 (Oct 2001) Rev. A Page 15 of 32 DMC Application Guide. Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Dual Mode Controller Application Guide
