Text from PDF Page: 003

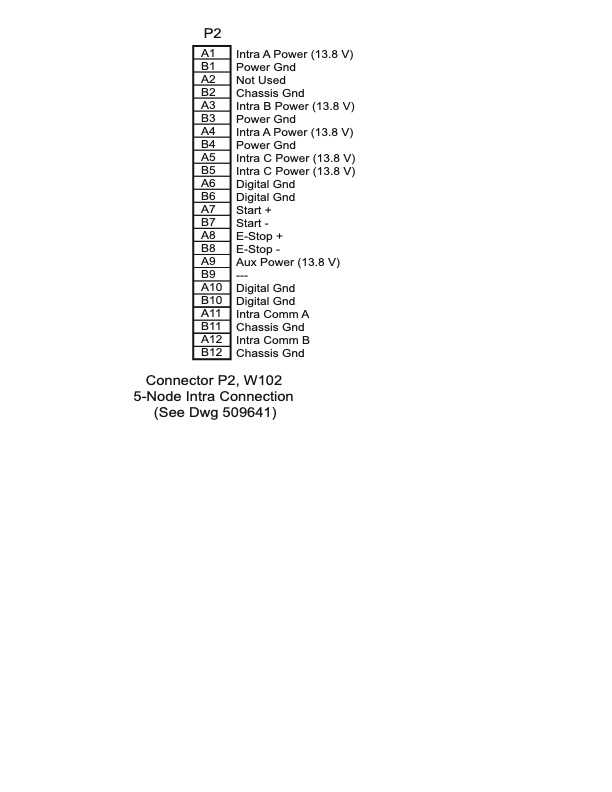

P2 A1 B1 A2 B2 A3 B3 A4 B4 A5 B5 A6 B6 A7 B7 A8 B8 A9 B9 A10 B10 A11 B11 A12 B12 Intra A Power (13.8 V) Power Gnd Not Used Chassis Gnd Intra B Power (13.8 V) Power Gnd Intra A Power (13.8 V) Power Gnd Intra C Power (13.8 V) Intra C Power (13.8 V) Digital Gnd Digital Gnd Start + Start - E-Stop + E-Stop - Aux Power (13.8 V) --- Digital Gnd Digital Gnd Intra Comm A Chassis Gnd Intra Comm B Chassis Gnd Connector P2, W102 5-Node Intra Connection (See Dwg 509641)PDF Image | Capstone diagram
