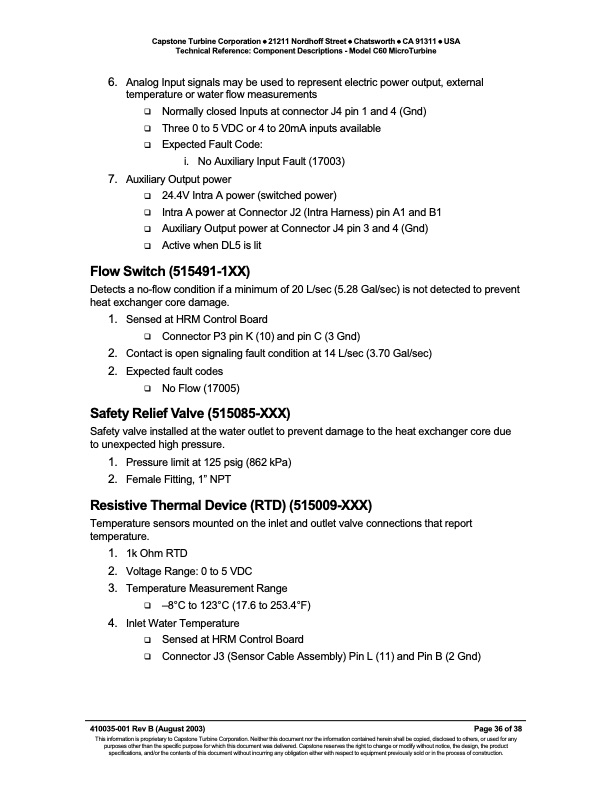

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C60 MicroTurbine 6. AnalogInputsignalsmaybeusedtorepresentelectricpoweroutput,external temperature or water flow measurements NormallyclosedInputsatconnectorJ4pin1and4(Gnd) Three0to5VDCor4to20mAinputsavailable ExpectedFaultCode: i. No Auxiliary Input Fault (17003) 7. AuxiliaryOutputpower 24.4VIntraApower(switchedpower) IntraApoweratConnectorJ2(IntraHarness)pinA1andB1 AuxiliaryOutputpoweratConnectorJ4pin3and4(Gnd) ActivewhenDL5islit Flow Switch (515491-1XX) Detects a no-flow condition if a minimum of 20 L/sec (5.28 Gal/sec) is not detected to prevent heat exchanger core damage. 1. SensedatHRMControlBoard ConnectorP3pinK(10)andpinC(3Gnd) 2. Contactisopensignalingfaultconditionat14L/sec(3.70Gal/sec) 2. Expectedfaultcodes NoFlow(17005) Safety Relief Valve (515085-XXX) Safety valve installed at the water outlet to prevent damage to the heat exchanger core due to unexpected high pressure. 1. Pressurelimitat125psig(862kPa) 2. FemaleFitting,1”NPT Resistive Thermal Device (RTD) (515009-XXX) Temperature sensors mounted on the inlet and outlet valve connections that report temperature. 1. 1kOhmRTD 2. VoltageRange:0to5VDC 3. TemperatureMeasurementRange –8°Cto123°C(17.6to253.4°F) 4. InletWaterTemperature SensedatHRMControlBoard ConnectorJ3(SensorCableAssembly)PinL(11)andPinB(2Gnd) 410035-001 Rev B (August 2003) Page 36 of 38 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C60 MicroTurbine
