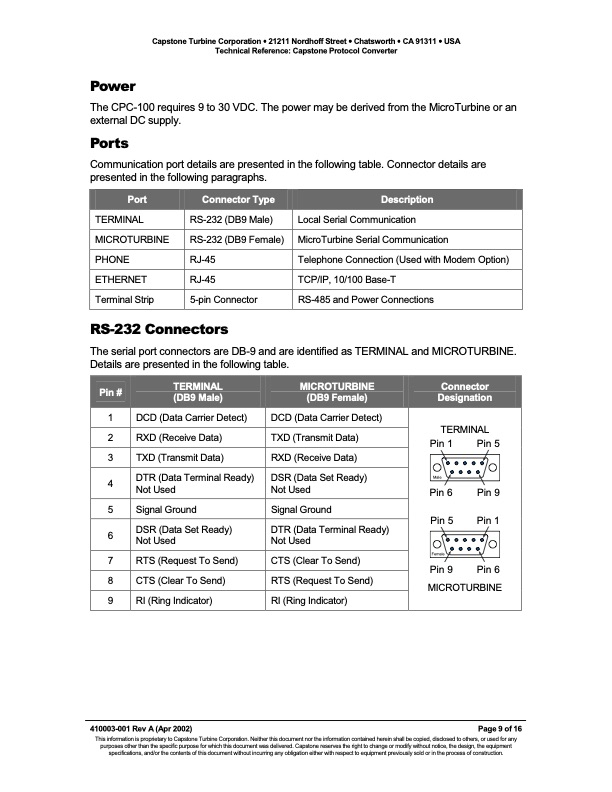

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Power The CPC-100 requires 9 to 30 VDC. The power may be derived from the MicroTurbine or an external DC supply. Ports Communication port details are presented in the following table. Connector details are presented in the following paragraphs. Port Connector Type Description TERMINAL MICROTURBINE PHONE ETHERNET Terminal Strip RS-232 (DB9 Male) RS-232 (DB9 Female) RJ-45 RJ-45 5-pin Connector Local Serial Communication MicroTurbine Serial Communication Telephone Connection (Used with Modem Option) TCP/IP, 10/100 Base-T RS-485 and Power Connections RS-232 Connectors The serial port connectors are DB-9 and are identified as TERMINAL and MICROTURBINE. Details are presented in the following table. Pin # TERMINAL (DB9 Male) MICROTURBINE (DB9 Female) Connector Designation 1 DCD (Data Carrier Detect) 2 RXD (Receive Data) 3 TXD (Transmit Data) DTR (Data Terminal Ready) Not Used DCD (Data Carrier Detect) TXD (Transmit Data) RXD (Receive Data) DSR (Data Set Ready) Not Used Signal Ground DTR (Data Terminal Ready) Not Used CTS (Clear To Send) RTS (Request To Send) RI (Ring Indicator) TERMINAL 4 5 Signal Ground Pin 1 Pin 6 Pin 5 Pin 9 Pin 5 Pin 9 Pin 1 Pin 6 Male 6 DSR (Data Set Ready) Not Used 7 RTS (Request To Send) 8 CTS (Clear To Send) 9 RI (Ring Indicator) MICROTURBINE Female 410003-001 Rev A (Apr 2002) Page 9 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Protocol Converter
