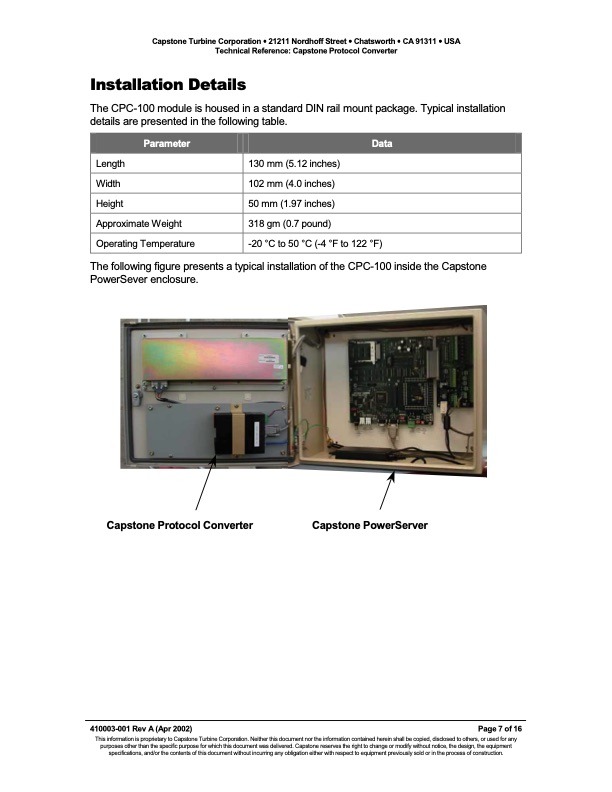

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Installation Details The CPC-100 module is housed in a standard DIN rail mount package. Typical installation details are presented in the following table. Parameter Data Length Width Height Approximate Weight Operating Temperature 130 mm (5.12 inches) 102 mm (4.0 inches) 50 mm (1.97 inches) 318 gm (0.7 pound) -20 °C to 50 °C (-4 °F to 122 °F) The following figure presents a typical installation of the CPC-100 inside the Capstone PowerSever enclosure. Capstone Protocol Converter Capstone PowerServer 410003-001 Rev A (Apr 2002) Page 7 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Protocol Converter
