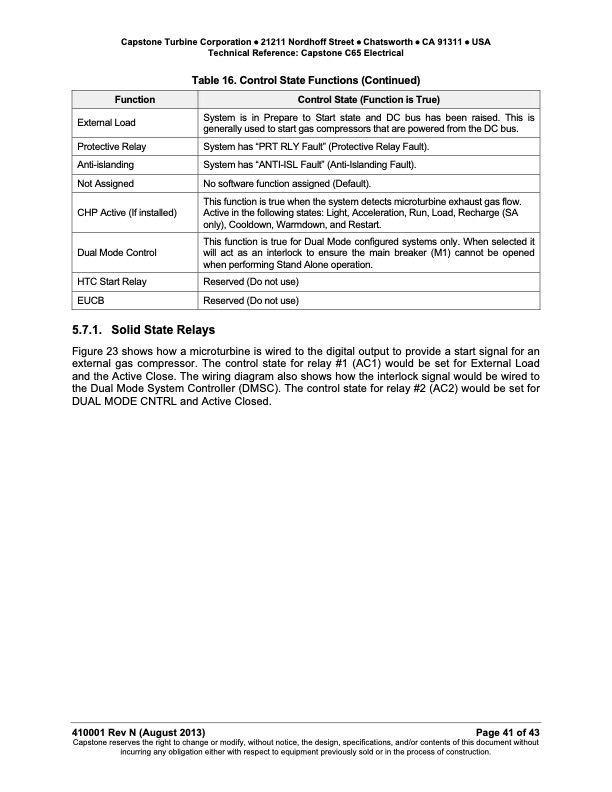

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical Function Control State (Function is True) External Load Protective Relay Anti-islanding Not Assigned CHP Active (If installed) Dual Mode Control HTC Start Relay EUCB Table 16. Control State Functions (Continued) System is in Prepare to Start state and DC bus has been raised. This is generally used to start gas compressors that are powered from the DC bus. System has “PRT RLY Fault” (Protective Relay Fault). System has “ANTI-ISL Fault” (Anti-Islanding Fault). No software function assigned (Default). This function is true when the system detects microturbine exhaust gas flow. Active in the following states: Light, Acceleration, Run, Load, Recharge (SA only), Cooldown, Warmdown, and Restart. This function is true for Dual Mode configured systems only. When selected it will act as an interlock to ensure the main breaker (M1) cannot be opened when performing Stand Alone operation. Reserved (Do not use) Reserved (Do not use) 5.7.1. Solid State Relays Figure 23 shows how a microturbine is wired to the digital output to provide a start signal for an external gas compressor. The control state for relay #1 (AC1) would be set for External Load and the Active Close. The wiring diagram also shows how the interlock signal would be wired to the Dual Mode System Controller (DMSC). The control state for relay #2 (AC2) would be set for DUAL MODE CNTRL and Active Closed. 410001 Rev N (August 2013) Page 41 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
