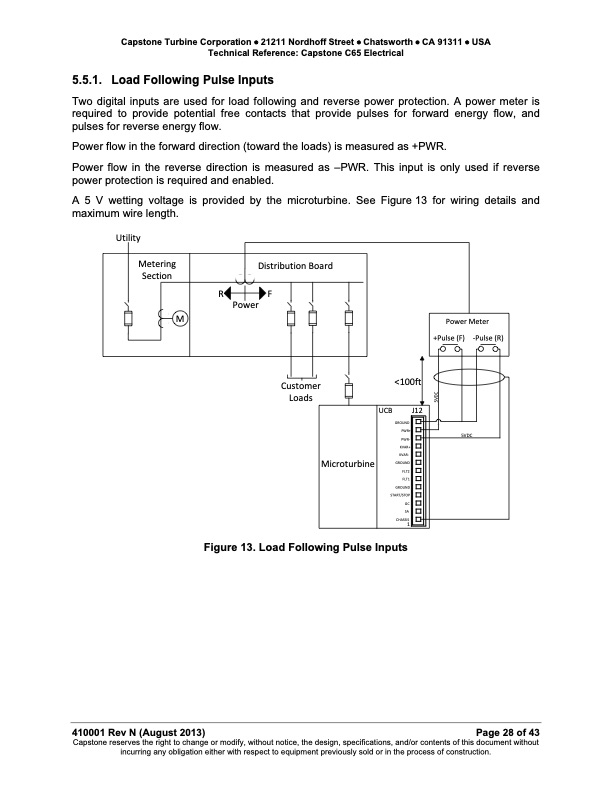

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 5.5.1. Load Following Pulse Inputs Two digital inputs are used for load following and reverse power protection. A power meter is required to provide potential free contacts that provide pulses for forward energy flow, and pulses for reverse energy flow. Power flow in the forward direction (toward the loads) is measured as +PWR. Power flow in the reverse direction is measured as –PWR. This input is only used if reverse power protection is required and enabled. A 5 V wetting voltage is provided by the microturbine. See Figure 13 for wiring details and maximum wire length. Utility Metering Section M Distribution Board RF Power Power Meter +Pulse (F) ‐Pulse (R) Customer Loads <100ft Microturbine UCB KVAR‐ GROUND FLT2 FLT1 GROUND START/STOP GC SA CHASSIS 1 J12 GROUND PWR+ PWR‐ KVAR+ 5VDC Figure 13. Load Following Pulse Inputs 410001 Rev N (August 2013) Page 28 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 5VDCPDF Image | Technical Reference Capstone Model C65 Electrical
