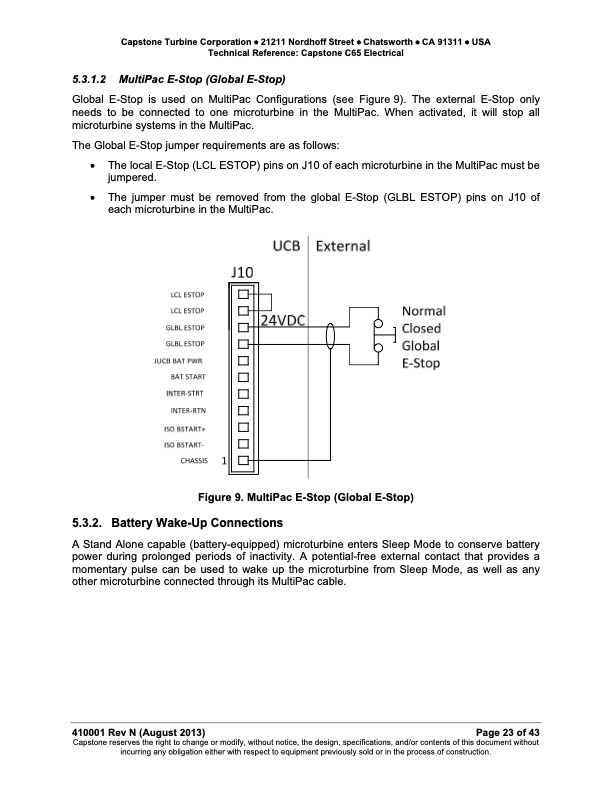

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 5.3.1.2 MultiPac E-Stop (Global E-Stop) Global E-Stop is used on MultiPac Configurations (see Figure 9). The external E-Stop only needs to be connected to one microturbine in the MultiPac. When activated, it will stop all microturbine systems in the MultiPac. The Global E-Stop jumper requirements are as follows: The local E-Stop (LCL ESTOP) pins on J10 of each microturbine in the MultiPac must be jumpered. The jumper must be removed from the global E-Stop (GLBL ESTOP) pins on J10 of each microturbine in the MultiPac. Figure 9. MultiPac E-Stop (Global E-Stop) Battery Wake-Up Connections 5.3.2. A Stand Alone capable (battery-equipped) microturbine enters Sleep Mode to conserve battery power during prolonged periods of inactivity. A potential-free external contact that provides a momentary pulse can be used to wake up the microturbine from Sleep Mode, as well as any other microturbine connected through its MultiPac cable. 410001 Rev N (August 2013) Page 23 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
