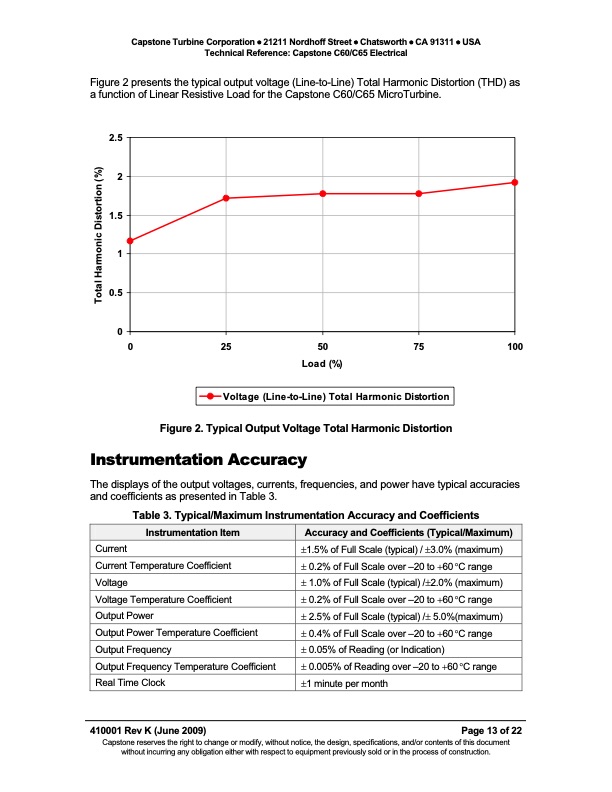

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C60/C65 Electrical Figure 2 presents the typical output voltage (Line-to-Line) Total Harmonic Distortion (THD) as a function of Linear Resistive Load for the Capstone C60/C65 MicroTurbine. 2.5 2 1.5 1 0.5 0 Instrumentation Accuracy The displays of the output voltages, currents, frequencies, and power have typical accuracies and coefficients as presented in Table 3. Table 3. Typical/Maximum Instrumentation Accuracy and Coefficients 0 25 50 75 100 Load (%) Figure 2. Typical Output Voltage Total Harmonic Distortion Voltage (Line-to-Line) Total Harmonic Distortion Instrumentation Item Accuracy and Coefficients (Typical/Maximum) Current Current Temperature Coefficient Voltage Voltage Temperature Coefficient Output Power Output Power Temperature Coefficient Output Frequency Output Frequency Temperature Coefficient Real Time Clock 410001 Rev K (June 2009) 1.5% of Full Scale (typical) / 3.0% (maximum) 0.2% of Full Scale over –20 to 60 C range 1.0% of Full Scale (typical) /2.0% (maximum) 0.2% of Full Scale over –20 to 60 C range 2.5% of Full Scale (typical) / 5.0%(maximum) 0.4% of Full Scale over –20 to 60 C range 0.05% of Reading (or Indication) 0.005% of Reading over –20 to 60 C range 1 minute per month Page 13 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Total Harmonic Distortion (%)PDF Image | Technical Reference Capstone Model C60/C65 Electrical
