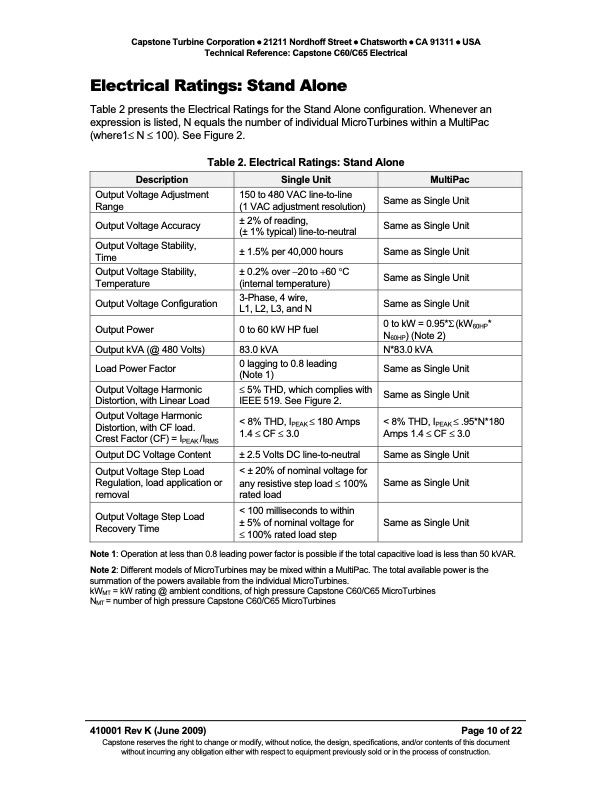

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C60/C65 Electrical Electrical Ratings: Stand Alone Table 2 presents the Electrical Ratings for the Stand Alone configuration. Whenever an expression is listed, N equals the number of individual MicroTurbines within a MultiPac (where1 N 100). See Figure 2. Table 2. Electrical Ratings: Stand Alone Description Single Unit MultiPac Output Voltage Adjustment Range Output Voltage Accuracy Output Voltage Stability, Time Output Voltage Stability, Temperature Output Voltage Configuration Output Power Output kVA (@ 480 Volts) Load Power Factor Output Voltage Harmonic Distortion, with Linear Load Output Voltage Harmonic Distortion, with CF load. Crest Factor (CF) = IPEAK /IRMS Output DC Voltage Content Output Voltage Step Load Regulation, load application or removal 150 to 480 VAC line-to-line (1 VAC adjustment resolution) ± 2% of reading, (± 1% typical) line-to-neutral ± 1.5% per 40,000 hours ± 0.2% over 20 to 60 C (internal temperature) 3-Phase, 4 wire, L1, L2, L3, and N 0 to 60 kW HP fuel 83.0 kVA 0 lagging to 0.8 leading (Note 1) 5% THD, which complies with IEEE 519. See Figure 2. < 8% THD, IPEAK 180 Amps 1.4CF3.0 ± 2.5 Volts DC line-to-neutral < ± 20% of nominal voltage for any resistive step load 100% rated load Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit 0 to kW = 0.95* (kW60HP* N60HP) (Note 2) N*83.0 kVA Same as Single Unit Same as Single Unit < 8% THD, IPEAK .95*N*180 Amps1.4CF3.0 Same as Single Unit Same as Single Unit Output Voltage Step Load Recovery Time < 100 milliseconds to within ± 5% of nominal voltage for 100% rated load step Same as Single Unit Note 1: Operation at less than 0.8 leading power factor is possible if the total capacitive load is less than 50 kVAR. Note 2: Different models of MicroTurbines may be mixed within a MultiPac. The total available power is the summation of the powers available from the individual MicroTurbines. kWMT = kW rating @ ambient conditions, of high pressure Capstone C60/C65 MicroTurbines NMT = number of high pressure Capstone C60/C65 MicroTurbines 410001 Rev K (June 2009) Page 10 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C60/C65 Electrical
PDF Search Title:
Technical Reference Capstone Model C60/C65 ElectricalOriginal File Name Searched:
C60_C65_Elect_Tech_Ref1.pdfDIY PDF Search: Google It | Yahoo | Bing
