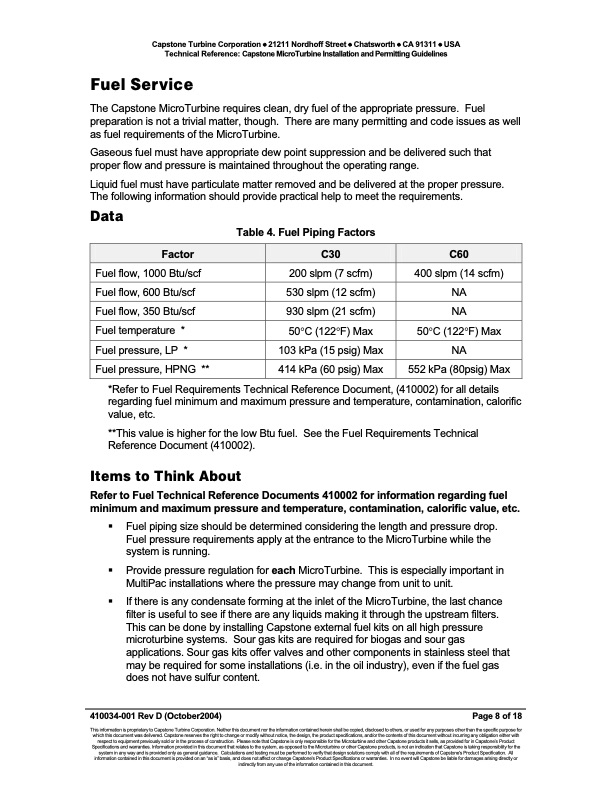

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines Fuel Service The Capstone MicroTurbine requires clean, dry fuel of the appropriate pressure. Fuel preparation is not a trivial matter, though. There are many permitting and code issues as well as fuel requirements of the MicroTurbine. Gaseous fuel must have appropriate dew point suppression and be delivered such that proper flow and pressure is maintained throughout the operating range. Liquid fuel must have particulate matter removed and be delivered at the proper pressure. The following information should provide practical help to meet the requirements. Data Fuel flow, 1000 Btu/scf Fuel flow, 600 Btu/scf Fuel flow, 350 Btu/scf Fuel temperature * Fuel pressure, LP * Fuel pressure, HPNG ** Table 4. Fuel Piping Factors 200 slpm (7 scfm) 530 slpm (12 scfm) 930 slpm (21 scfm) 50°C (122°F) Max 103 kPa (15 psig) Max 414 kPa (60 psig) Max 400 slpm (14 scfm) NA NA 50°C (122°F) Max NA 552 kPa (80psig) Max Factor C30 C60 *Refer to Fuel Requirements Technical Reference Document, (410002) for all details regarding fuel minimum and maximum pressure and temperature, contamination, calorific value, etc. **This value is higher for the low Btu fuel. See the Fuel Requirements Technical Reference Document (410002). Items to Think About Refer to Fuel Technical Reference Documents 410002 for information regarding fuel minimum and maximum pressure and temperature, contamination, calorific value, etc. Fuel piping size should be determined considering the length and pressure drop. Fuel pressure requirements apply at the entrance to the MicroTurbine while the system is running. Provide pressure regulation for each MicroTurbine. This is especially important in MultiPac installations where the pressure may change from unit to unit. If there is any condensate forming at the inlet of the MicroTurbine, the last chance filter is useful to see if there are any liquids making it through the upstream filters. This can be done by installing Capstone external fuel kits on all high pressure microturbine systems. Sour gas kits are required for biogas and sour gas applications. Sour gas kits offer valves and other components in stainless steel that may be required for some installations (i.e. in the oil industry), even if the fuel gas does not have sulfur content. 410034-001 Rev D (October2004) Page 8 of 18 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
