Text from PDF Page: 015

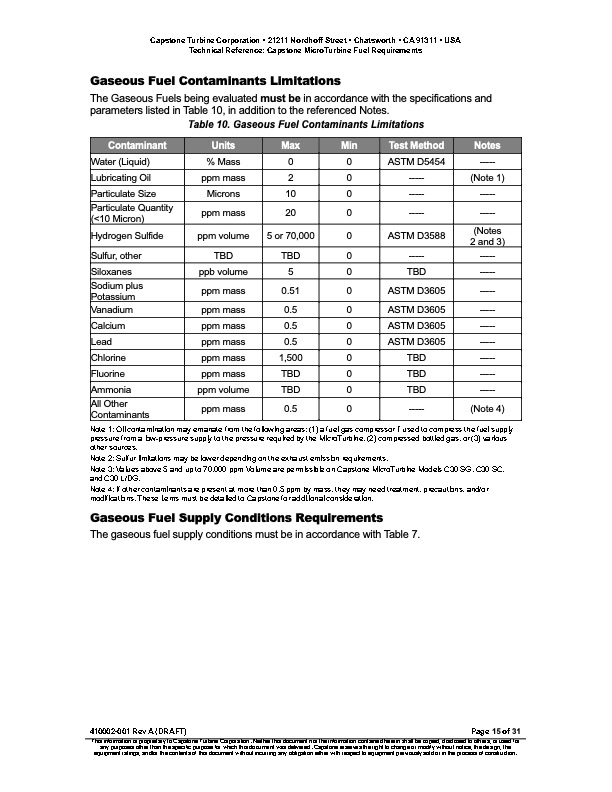

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Gaseous Fuel Contaminants Limitations The Gaseous Fuels being evaluated must be in accordance with the specifications and parameters listed in Table 10, in addition to the referenced Notes. Table 10. Gaseous Fuel Contaminants Limitations Contaminant Units Max Min Test Method Notes Water (Liquid) Lubricating Oil Particulate Size Particulate Quantity (<10 Micron) Hydrogen Sulfide Sulfur, other Siloxanes Sodium plus Potassium Vanadium Calcium Lead Chlorine Fluorine Ammonia All Other Contaminants % Mass ppm mass Microns ppm mass ppm volume TBD ppb volume ppm mass ppm mass ppm mass ppm mass ppm mass ppm mass ppm volume ppm mass 0 0 2 0 10 0 20 0 5 or 70,000 0 TBD 0 5 0 0.51 0 0.5 0 0.5 0 0.5 0 1,500 0 TBD 0 TBD 0 0.5 0 ASTM D5454 ----- ----- ----- ASTM D3588 ----- TBD ASTM D3605 ASTM D3605 ASTM D3605 ASTM D3605 TBD TBD TBD ----- ----- (Note 1) ----- ----- (Notes 2and3) ----- ----- ----- ----- ----- ----- ----- ----- ----- (Note 4) Note 1: Oil contamination may emanate from the following areas: (1) a fuel gas compressor if used to compress the fuel supply pressure from a low-pressure supply to the pressure required by the MicroTurbine, (2) compressed bottled gas, or (3) various other sources. Note 2: Sulfur limitations may be lower depending on the exhaust emission requirements. Note 3: Values above 5 and up to 70,000 ppm Volume are permissible on Capstone MicroTurbine Models C30 SG, C30 SC, and C30 L/DG. Note 4: If other contaminants are present at more than 0.5 ppm by mass, they may need treatment, precautions, and/or modifications. These items must be detailed to Capstone for additional consideration. Gaseous Fuel Supply Conditions Requirements The gaseous fuel supply conditions must be in accordance with Table 7. 410002-001 Rev A (DRAFT) Page 15 of 31 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
