Text from PDF Page: 006

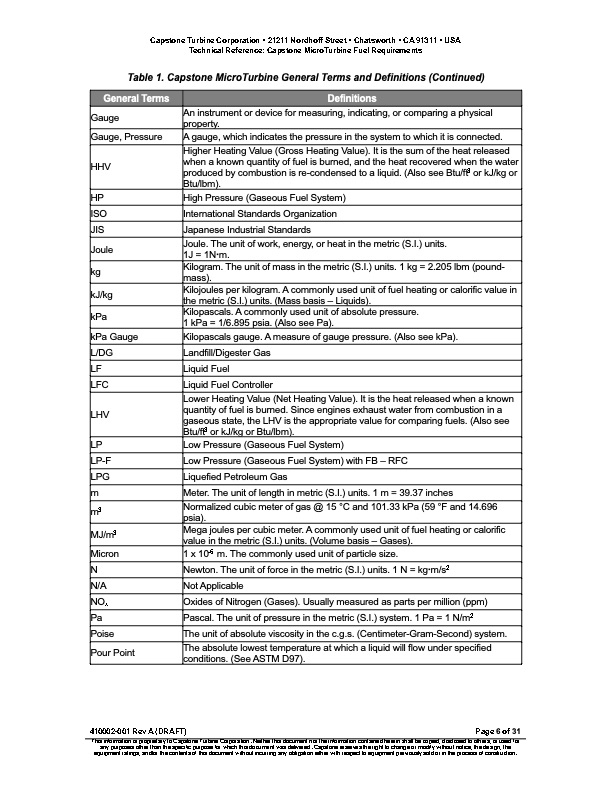

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Table 1. Capstone MicroTurbine General Terms and Definitions (Continued) General Terms Definitions Gauge Gauge, Pressure HP ISO JIS Joule kg kJ/kg kPa kPa Gauge L/DG LF LFC LP LP-F LPG m m3 MJ/m3 Micron N N/A NOx Pa Poise Pour Point An instrument or device for measuring, indicating, or comparing a physical property. A gauge, which indicates the pressure in the system to which it is connected. High Pressure (Gaseous Fuel System) International Standards Organization Japanese Industrial Standards Joule. The unit of work, energy, or heat in the metric (S.I.) units. 1J = 1N"m. Kilogram. The unit of mass in the metric (S.I.) units. 1 kg = 2.205 lbm (pound- mass). Kilojoules per kilogram. A commonly used unit of fuel heating or calorific value in the metric (S.I.) units. (Mass basis – Liquids). Kilopascals. A commonly used unit of absolute pressure. 1 kPa = 1/6.895 psia. (Also see Pa). Kilopascals gauge. A measure of gauge pressure. (Also see kPa). Landfill/Digester Gas Liquid Fuel Liquid Fuel Controller Low Pressure (Gaseous Fuel System) Low Pressure (Gaseous Fuel System) with FB – RFC Liquefied Petroleum Gas Meter. The unit of length in metric (S.I.) units. 1 m = 39.37 inches Normalized cubic meter of gas @ 15 °C and 101.33 kPa (59 °F and 14.696 psia). Mega joules per cubic meter. A commonly used unit of fuel heating or calorific value in the metric (S.I.) units. (Volume basis – Gases). 1 x 10-6 m. The commonly used unit of particle size. Newton. The unit of force in the metric (S.I.) units. 1 N = kg"m/s2 Not Applicable Oxides of Nitrogen (Gases). Usually measured as parts per million (ppm) Pascal. The unit of pressure in the metric (S.I.) system. 1 Pa = 1 N/m2 The unit of absolute viscosity in the c.g.s. (Centimeter-Gram-Second) system. The absolute lowest temperature at which a liquid will flow under specified conditions. (See ASTM D97). HHV Higher Heating Value (Gross Heating Value). It is the sum of the heat released when a known quantity of fuel is burned, and the heat recovered when the water produced by combustion is re-condensed to a liquid. (Also see Btu/ft3 or kJ/kg or Btu/lbm). LHV Lower Heating Value (Net Heating Value). It is the heat released when a known quantity of fuel is burned. Since engines exhaust water from combustion in a gaseous state, the LHV is the appropriate value for comparing fuels. (Also see Btu/ft3 or kJ/kg or Btu/lbm). 410002-001 Rev A (DRAFT) Page 6 of 31 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
PDF Search Title:
Technical Reference Capstone MicroTurbine Fuel RequirementsOriginal File Name Searched:
410002 Fuel Rqmts TechRef_DRAFT.pdfDIY PDF Search: Google It | Yahoo | Bing
