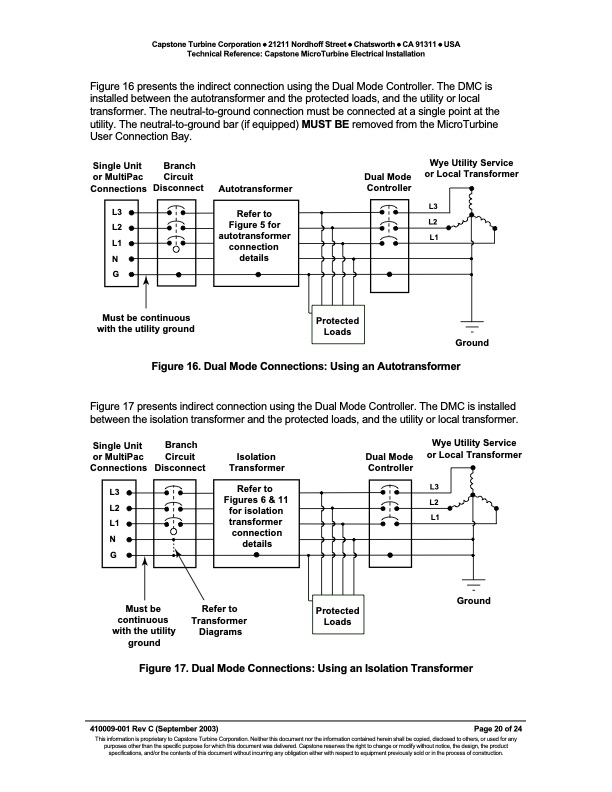

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Electrical Installation Figure 16 presents the indirect connection using the Dual Mode Controller. The DMC is installed between the autotransformer and the protected loads, and the utility or local transformer. The neutral-to-ground connection must be connected at a single point at the utility. The neutral-to-ground bar (if equipped) MUST BE removed from the MicroTurbine User Connection Bay. Single Unit Branch or MultiPac Circuit Connections Disconnect Autotransformer Dual Mode Controller Wye Utility Service or Local Transformer L3 L2 L1 L3 L2 L1 N G Refer to Figure 5 for autotransformer connection details Protected Loads Must be continuous with the utility ground Figure 16. Dual Mode Connections: Using an Autotransformer Figure 17 presents indirect connection using the Dual Mode Controller. The DMC is installed between the isolation transformer and the protected loads, and the utility or local transformer. Single Unit Branch or MultiPac Circuit Connections Disconnect Isolation Transformer Dual Mode Controller Wye Utility Service or Local Transformer L3 L2 L1 Ground L3 L2 L1 N G Refer to Figures 6 & 11 for isolation transformer connection details Protected Loads Must be continuous with the utility ground Refer to Transformer Diagrams Ground Figure 17. Dual Mode Connections: Using an Isolation Transformer 410009-001 Rev C (September 2003) Page 20 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Electrical Installation Introduction
