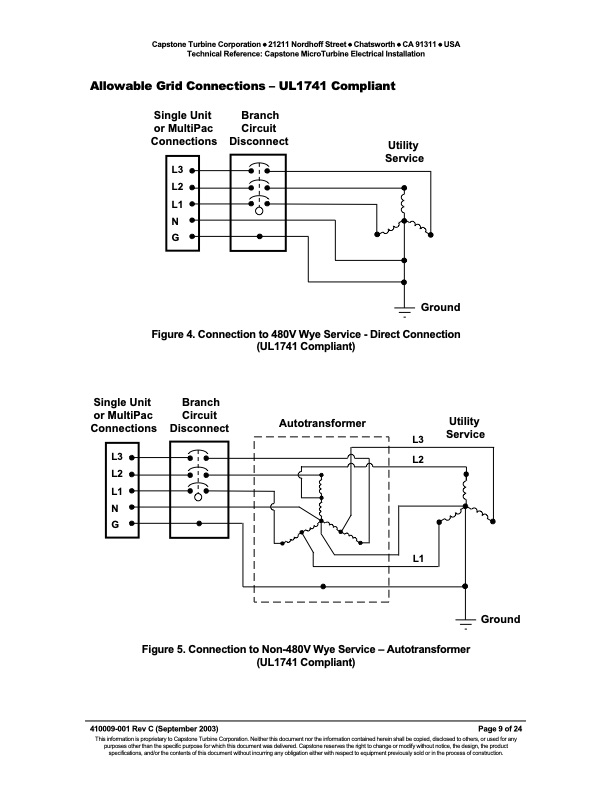

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Electrical Installation Allowable Grid Connections – UL1741 Compliant Single Unit Branch or MultiPac Circuit Connections Disconnect Utility Service L3 L2 L1 N G Ground Figure 4. Connection to 480V Wye Service - Direct Connection (UL1741 Compliant) Single Unit Branch or MultiPac Circuit Connections Disconnect Autotransformer Utility Service L3 L2 L3 L2 L1 N G L1 Figure 5. Connection to Non-480V Wye Service – Autotransformer (UL1741 Compliant) 410009-001 Rev C (September 2003) Ground Page 9 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Electrical Installation Introduction
