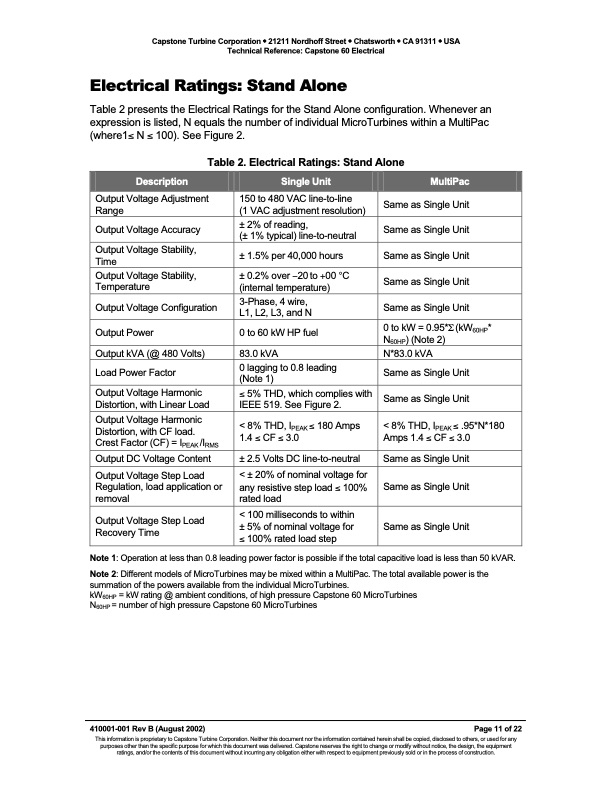

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone 60 Electrical Electrical Ratings: Stand Alone Table 2 presents the Electrical Ratings for the Stand Alone configuration. Whenever an expression is listed, N equals the number of individual MicroTurbines within a MultiPac (where1≤ N ≤ 100). See Figure 2. Table 2. Electrical Ratings: Stand Alone Description Single Unit MultiPac Output Voltage Adjustment Range Output Voltage Accuracy Output Voltage Stability, Time Output Voltage Stability, Temperature Output Voltage Configuration Output Power Output kVA (@ 480 Volts) Load Power Factor Output Voltage Harmonic Distortion, with Linear Load Output Voltage Harmonic Distortion, with CF load. Crest Factor (CF) = IPEAK /IRMS Output DC Voltage Content Output Voltage Step Load Regulation, load application or removal 150 to 480 VAC line-to-line (1 VAC adjustment resolution) ± 2% of reading, (± 1% typical) line-to-neutral ± 1.5% per 40,000 hours ± 0.2% over −20 to +00 °C (internal temperature) 3-Phase, 4 wire, L1, L2, L3, and N 0to60kWHPfuel 83.0 kVA 0 lagging to 0.8 leading (Note 1) ≤ 5% THD, which complies with IEEE 519. See Figure 2. < 8% THD, IPEAK ≤ 180 Amps 1.4 ≤ CF ≤ 3.0 ± 2.5 Volts DC line-to-neutral < ± 20% of nominal voltage for any resistive step load ≤ 100% rated load Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit 0 to kW = 0.95*Σ (kW60HP* N60HP) (Note 2) N*83.0 kVA Same as Single Unit Same as Single Unit < 8% THD, IPEAK ≤ .95*N*180 Amps1.4≤CF≤3.0 Same as Single Unit Same as Single Unit Output Voltage Step Load Recovery Time < 100 milliseconds to within ± 5% of nominal voltage for ≤ 100% rated load step Same as Single Unit Note 1: Operation at less than 0.8 leading power factor is possible if the total capacitive load is less than 50 kVAR. Note 2: Different models of MicroTurbines may be mixed within a MultiPac. The total available power is the summation of the powers available from the individual MicroTurbines. kW60HP = kW rating @ ambient conditions, of high pressure Capstone 60 MicroTurbines N60HP = number of high pressure Capstone 60 MicroTurbines 410001-001 Rev B (August 2002) Page 11 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone 60 Electrical
