PDF Publication Title:
Text from PDF Page: 008

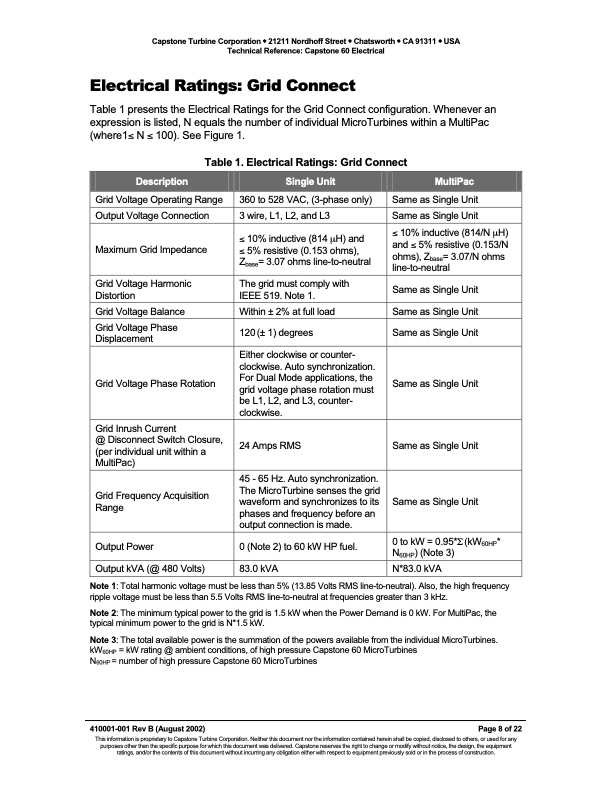

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone 60 Electrical Electrical Ratings: Grid Connect Table 1 presents the Electrical Ratings for the Grid Connect configuration. Whenever an expression is listed, N equals the number of individual MicroTurbines within a MultiPac (where1≤ N ≤ 100). See Figure 1. Table 1. Electrical Ratings: Grid Connect Description Single Unit MultiPac Grid Voltage Operating Range Output Voltage Connection Grid Voltage Harmonic Distortion Grid Voltage Balance Grid Voltage Phase Displacement 360 to 528 VAC, (3-phase only) 3 wire, L1, L2, and L3 The grid must comply with IEEE 519. Note 1. Within ± 2% at full load 120 (± 1) degrees Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Same as Single Unit Maximum Grid Impedance ≤ 10% inductive (814 μH) and ≤ 5% resistive (0.153 ohms), Zbase= 3.07 ohms line-to-neutral ≤ 10% inductive (814/N μH) and ≤ 5% resistive (0.153/N ohms), Zbase= 3.07/N ohms line-to-neutral Grid Voltage Phase Rotation Either clockwise or counter- clockwise. Auto synchronization. For Dual Mode applications, the grid voltage phase rotation must be L1, L2, and L3, counter- clockwise. Same as Single Unit Grid Inrush Current @ Disconnect Switch Closure, (per individual unit within a MultiPac) 24 Amps RMS Same as Single Unit Grid Frequency Acquisition Range 45 - 65 Hz. Auto synchronization. The MicroTurbine senses the grid waveform and synchronizes to its phases and frequency before an output connection is made. Same as Single Unit Output Power Output kVA (@ 480 Volts) 0(Note2)to60kWHPfuel. 83.0 kVA 0 to kW = 0.95*Σ (kW60HP* N60HP) (Note 3) N*83.0 kVA Note 1: Total harmonic voltage must be less than 5% (13.85 Volts RMS line-to-neutral). Also, the high frequency ripple voltage must be less than 5.5 Volts RMS line-to-neutral at frequencies greater than 3 kHz. Note 2: The minimum typical power to the grid is 1.5 kW when the Power Demand is 0 kW. For MultiPac, the typical minimum power to the grid is N*1.5 kW. Note 3: The total available power is the summation of the powers available from the individual MicroTurbines. kW60HP = kW rating @ ambient conditions, of high pressure Capstone 60 MicroTurbines N60HP = number of high pressure Capstone 60 MicroTurbines 410001-001 Rev B (August 2002) Page 8 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone 60 Electrical
PDF Search Title:
Technical Reference Capstone 60 ElectricalOriginal File Name Searched:
410001 Model C60 Electrical.pdfDIY PDF Search: Google It | Yahoo | Bing
