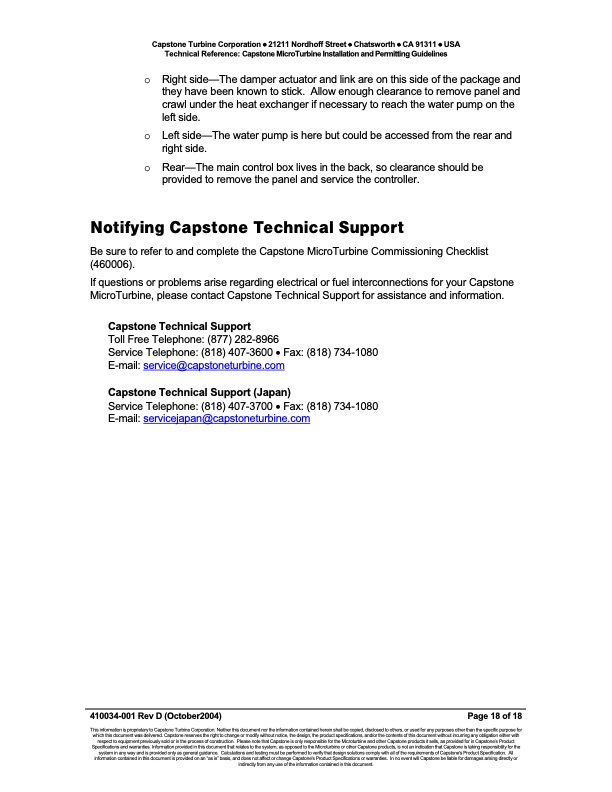

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines o Right side—The damper actuator and link are on this side of the package and they have been known to stick. Allow enough clearance to remove panel and crawl under the heat exchanger if necessary to reach the water pump on the left side. o Left side—The water pump is here but could be accessed from the rear and right side. o Rear—The main control box lives in the back, so clearance should be provided to remove the panel and service the controller. Notifying Capstone Technical Support Be sure to refer to and complete the Capstone MicroTurbine Commissioning Checklist (460006). If questions or problems arise regarding electrical or fuel interconnections for your Capstone MicroTurbine, please contact Capstone Technical Support for assistance and information. Capstone Technical Support Toll Free Telephone: (877) 282-8966 Service Telephone: (818) 407-3600 • Fax: (818) 734-1080 E-mail: service@capstoneturbine.com Capstone Technical Support (Japan) Service Telephone: (818) 407-3700 • Fax: (818) 734-1080 E-mail: servicejapan@capstoneturbine.com 410034-001 Rev D (October2004) Page 18 of 18 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | TECH REF Installation and Permitting
