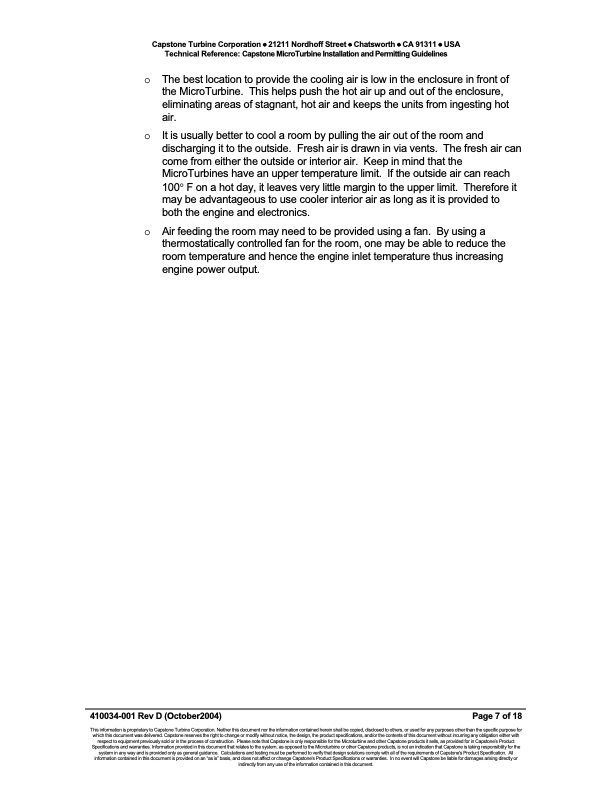

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines o The best location to provide the cooling air is low in the enclosure in front of the MicroTurbine. This helps push the hot air up and out of the enclosure, eliminating areas of stagnant, hot air and keeps the units from ingesting hot air. o It is usually better to cool a room by pulling the air out of the room and discharging it to the outside. Fresh air is drawn in via vents. The fresh air can come from either the outside or interior air. Keep in mind that the MicroTurbines have an upper temperature limit. If the outside air can reach 100° F on a hot day, it leaves very little margin to the upper limit. Therefore it may be advantageous to use cooler interior air as long as it is provided to both the engine and electronics. o Air feeding the room may need to be provided using a fan. By using a thermostatically controlled fan for the room, one may be able to reduce the room temperature and hence the engine inlet temperature thus increasing engine power output. 410034-001 Rev D (October2004) Page 7 of 18 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | TECH REF Installation and Permitting
