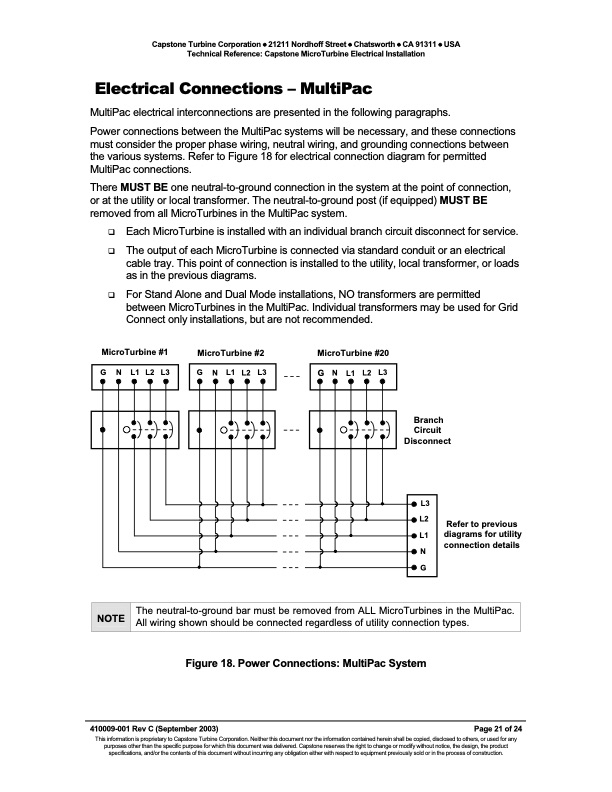

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Electrical Installation Electrical Connections – MultiPac MultiPac electrical interconnections are presented in the following paragraphs. Power connections between the MultiPac systems will be necessary, and these connections must consider the proper phase wiring, neutral wiring, and grounding connections between the various systems. Refer to Figure 18 for electrical connection diagram for permitted MultiPac connections. There MUST BE one neutral-to-ground connection in the system at the point of connection, or at the utility or local transformer. The neutral-to-ground post (if equipped) MUST BE removed from all MicroTurbines in the MultiPac system. EachMicroTurbineisinstalledwithanindividualbranchcircuitdisconnectforservice. TheoutputofeachMicroTurbineisconnectedviastandardconduitoranelectrical cable tray. This point of connection is installed to the utility, local transformer, or loads as in the previous diagrams. ForStandAloneandDualModeinstallations,NOtransformersarepermitted between MicroTurbines in the MultiPac. Individual transformers may be used for Grid Connect only installations, but are not recommended. MicroTurbine #1 MicroTurbine #2 MicroTurbine #20 G N L1 L2 L3 G N L1 L2 L3 G N L1 L2 L3 Branch Circuit Disconnect Refer to previous diagrams for utility connection details L3 L2 L1 N G The neutral-to-ground bar must be removed from ALL MicroTurbines in the MultiPac. All wiring shown should be connected regardless of utility connection types. Figure 18. Power Connections: MultiPac System 410009-001 Rev C (September 2003) Page 21 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTEPDF Image | TECH REF Elec Install
