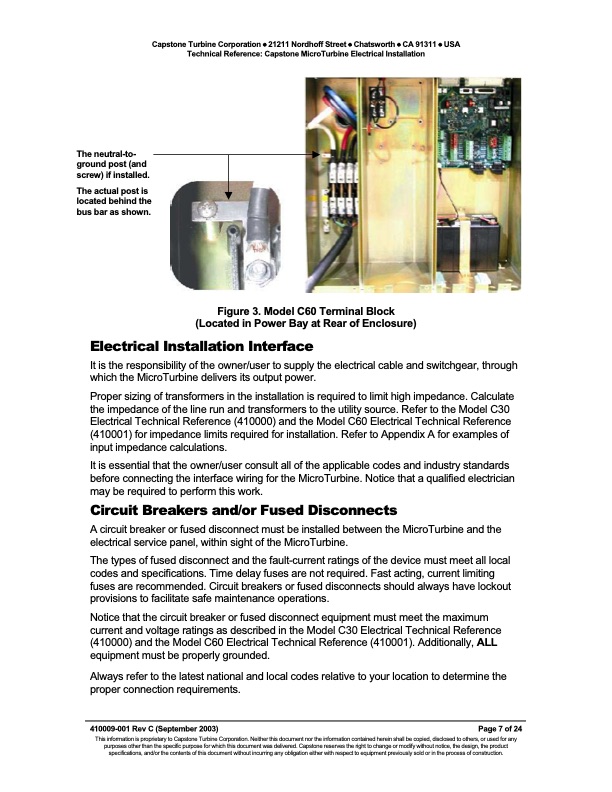

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Electrical Installation Figure 3. Model C60 Terminal Block (Located in Power Bay at Rear of Enclosure) Electrical Installation Interface It is the responsibility of the owner/user to supply the electrical cable and switchgear, through which the MicroTurbine delivers its output power. Proper sizing of transformers in the installation is required to limit high impedance. Calculate the impedance of the line run and transformers to the utility source. Refer to the Model C30 Electrical Technical Reference (410000) and the Model C60 Electrical Technical Reference (410001) for impedance limits required for installation. Refer to Appendix A for examples of input impedance calculations. It is essential that the owner/user consult all of the applicable codes and industry standards before connecting the interface wiring for the MicroTurbine. Notice that a qualified electrician may be required to perform this work. Circuit Breakers and/or Fused Disconnects A circuit breaker or fused disconnect must be installed between the MicroTurbine and the electrical service panel, within sight of the MicroTurbine. The types of fused disconnect and the fault-current ratings of the device must meet all local codes and specifications. Time delay fuses are not required. Fast acting, current limiting fuses are recommended. Circuit breakers or fused disconnects should always have lockout provisions to facilitate safe maintenance operations. Notice that the circuit breaker or fused disconnect equipment must meet the maximum current and voltage ratings as described in the Model C30 Electrical Technical Reference (410000) and the Model C60 Electrical Technical Reference (410001). Additionally, ALL equipment must be properly grounded. Always refer to the latest national and local codes relative to your location to determine the proper connection requirements. 410009-001 Rev C (September 2003) Page 7 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. The neutral-to- ground post (and screw) if installed. The actual post is located behind the bus bar as shown.PDF Image | TECH REF Elec Install
