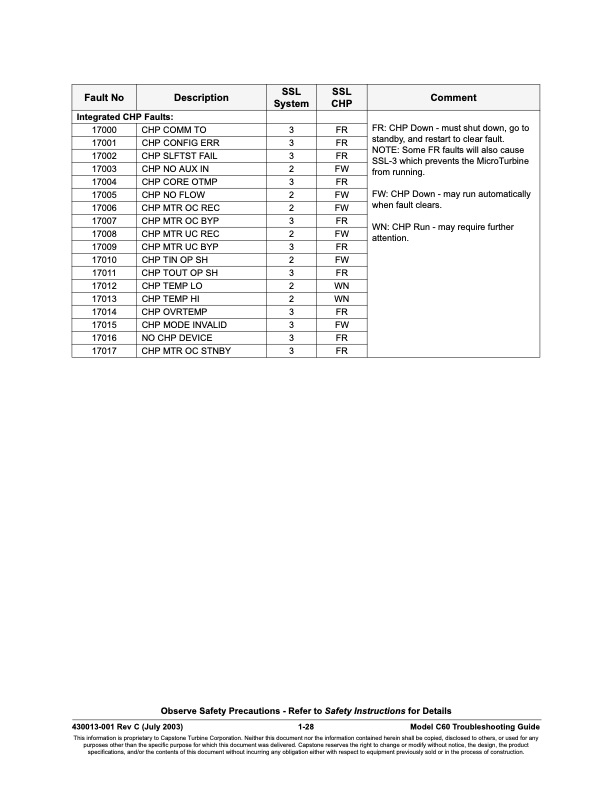

Fault No Description SSL System SSL CHP Comment Integrated CHP Faults: FR: CHP Down - must shut down, go to standby, and restart to clear fault. NOTE: Some FR faults will also cause SSL-3 which prevents the MicroTurbine from running. FW: CHP Down - may run automatically when fault clears. WN: CHP Run - may require further attention. 17000 CHP COMM TO 3 FR 17001 CHP CONFIG ERR 3 FR 17002 CHP SLFTST FAIL 3 FR 17003 CHP NO AUX IN 2 FW 17004 CHP CORE OTMP 3 FR 17005 CHP NO FLOW 2 FW 17006 CHP MTR OC REC 2 FW 17007 CHP MTR OC BYP 3 FR 17008 CHP MTR UC REC 2 FW 17009 CHP MTR UC BYP 3 FR 17010 CHP TIN OP SH 2 FW 17011 CHP TOUT OP SH 3 FR 17012 CHP TEMP LO 2 WN 17013 CHP TEMP HI 2 WN 17014 CHP OVRTEMP 3 FR 17015 CHP MODE INVALID 3 FW 17016 NO CHP DEVICE 3 FR 17017 CHP MTR OC STNBY 3 FR Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 1-28 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Table of Contents for Series Fault Codes
