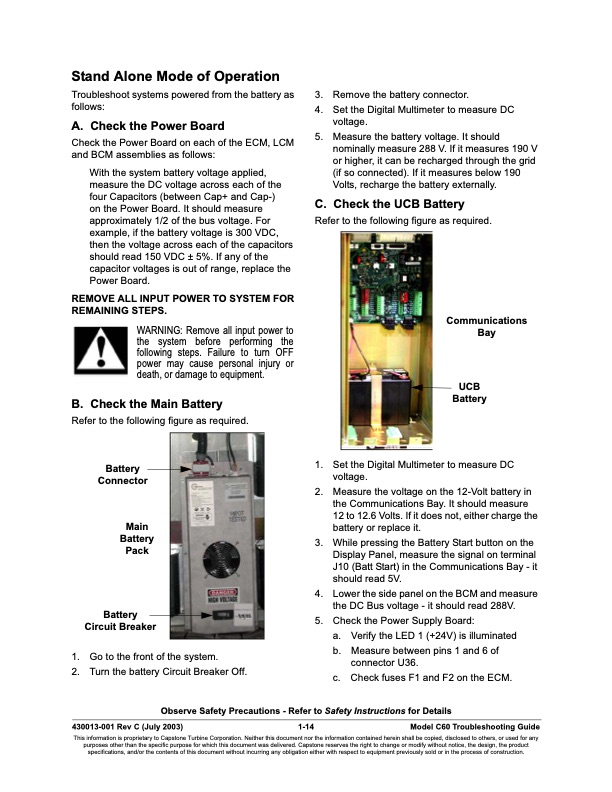

Stand Alone Mode of Operation Troubleshoot systems powered from the battery as follows: A. Check the Power Board Check the Power Board on each of the ECM, LCM and BCM assemblies as follows: With the system battery voltage applied, measure the DC voltage across each of the four Capacitors (between Cap+ and Cap-) on the Power Board. It should measure approximately 1/2 of the bus voltage. For example, if the battery voltage is 300 VDC, then the voltage across each of the capacitors should read 150 VDC ± 5%. If any of the capacitor voltages is out of range, replace the Power Board. REMOVE ALL INPUT POWER TO SYSTEM FOR REMAINING STEPS. WARNING: Remove all input power to the system before performing the following steps. Failure to turn OFF power may cause personal injury or death, or damage to equipment. B. Check the Main Battery Refer to the following figure as required. 3. Remove the battery connector. 4. Set the Digital Multimeter to measure DC voltage. 5. Measure the battery voltage. It should nominally measure 288 V. If it measures 190 V or higher, it can be recharged through the grid (if so connected). If it measures below 190 Volts, recharge the battery externally. C. Check the UCB Battery Refer to the following figure as required. Communications Bay UCB Battery 1. Set the Digital Multimeter to measure DC voltage. 2. Measure the voltage on the 12-Volt battery in the Communications Bay. It should measure 12 to 12.6 Volts. If it does not, either charge the battery or replace it. 3. While pressing the Battery Start button on the Display Panel, measure the signal on terminal J10 (Batt Start) in the Communications Bay - it should read 5V. 4. Lower the side panel on the BCM and measure the DC Bus voltage - it should read 288V. 5. Check the Power Supply Board: a. Verify the LED 1 (+24V) is illuminated b. Measure between pins 1 and 6 of connector U36. c. Check fuses F1 and F2 on the ECM. 1. 2. Battery Connector Main Battery Pack Battery Circuit Breaker Go to the front of the system. Turn the battery Circuit Breaker Off. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 1-14 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Table of Contents for Series Fault Codes
