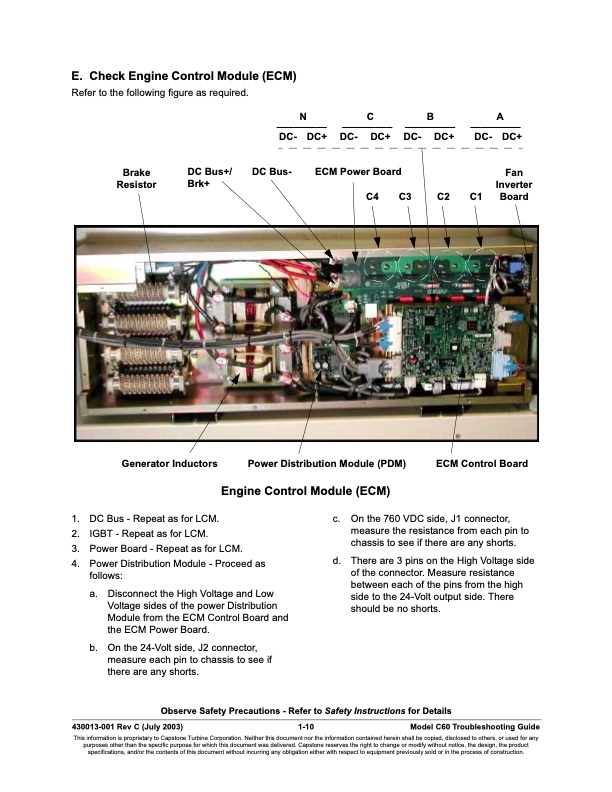

E. Check Engine Control Module (ECM) Refer to the following figure as required. Brake Resistor DC Bus+/ Brk+ DC Bus- ECM Power Board C4 C3 Fan Inverter Board NCBA _________ _________ _________ _________ DC- DC+ DC- DC+ DC- DC+ DC- DC+ C2 C1 Generator Inductors 1. DC Bus - Repeat as for LCM. 2. IGBT - Repeat as for LCM. 3. Power Board - Repeat as for LCM. 4. Power Distribution Module - Proceed as follows: a. Disconnect the High Voltage and Low Voltage sides of the power Distribution Module from the ECM Control Board and the ECM Power Board. b. On the 24-Volt side, J2 connector, measure each pin to chassis to see if there are any shorts. ECM Control Board Power Distribution Module (PDM) Engine Control Module (ECM) Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 1-10 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. c. On the 760 VDC side, J1 connector, measure the resistance from each pin to chassis to see if there are any shorts. d. There are 3 pins on the High Voltage side of the connector. Measure resistance between each of the pins from the high side to the 24-Volt output side. There should be no shorts.PDF Image | Table of Contents for Series Fault Codes
