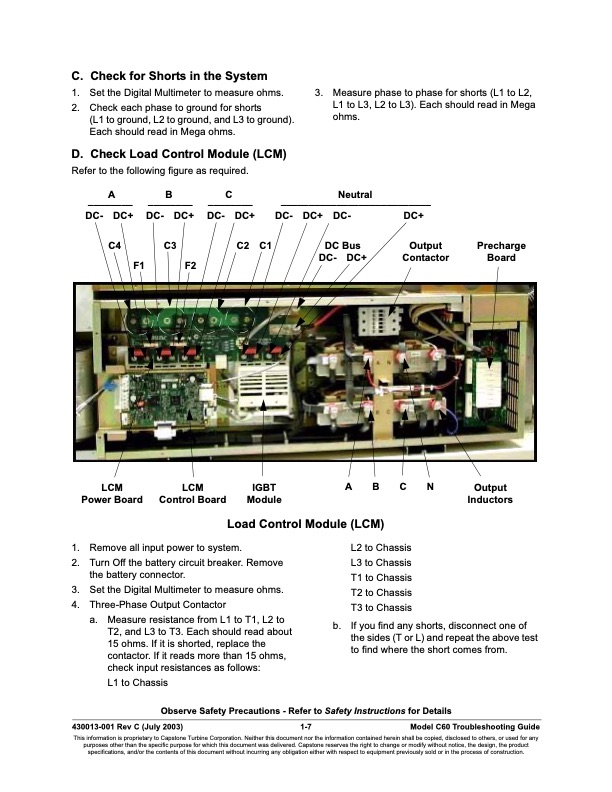

C. Check for Shorts in the System 1. Set the Digital Multimeter to measure ohms. 2. Check each phase to ground for shorts (L1 to ground, L2 to ground, and L3 to ground). Each should read in Mega ohms. D. Check Load Control Module (LCM) Refer to the following figure as required. 3. Measure phase to phase for shorts (L1 to L2, L1 to L3, L2 to L3). Each should read in Mega ohms. Neutral DC- DC+ DC- DC+ DC- DC+ DC- DC+ DC- C4 C3 C2 C1 DCBus A B C ________ ________ ________ ___________________________ F1 F2 DC- DC+ DC+ Output Contactor Precharge Board LCM LCM IGBT A B C N Output Power Board Control Board Module Inductors Load Control Module (LCM) 1. Remove all input power to system. 2. Turn Off the battery circuit breaker. Remove the battery connector. 3. Set the Digital Multimeter to measure ohms. 4. Three-Phase Output Contactor a. Measure resistance from L1 to T1, L2 to T2, and L3 to T3. Each should read about 15 ohms. If it is shorted, replace the contactor. If it reads more than 15 ohms, check input resistances as follows: L1 to Chassis b. L2 to Chassis L3 to Chassis T1 to Chassis T2 to Chassis T3 to Chassis If you find any shorts, disconnect one of the sides (T or L) and repeat the above test to find where the short comes from. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 1-7 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Table of Contents for Series Fault Codes
