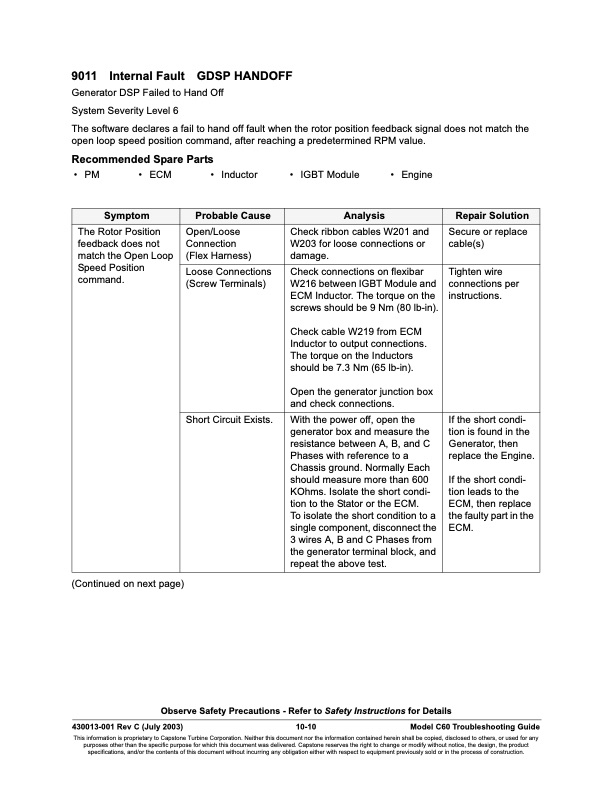

9011 Internal Fault GDSP HANDOFF Generator DSP Failed to Hand Off System Severity Level 6 The software declares a fail to hand off fault when the rotor position feedback signal does not match the open loop speed position command, after reaching a predetermined RPM value. Recommended Spare Parts • PM • ECM • Inductor • IGBT Module • Engine Symptom Probable Cause Analysis Repair Solution The Rotor Position feedback does not match the Open Loop Speed Position command. Open/Loose Connection (Flex Harness) Check ribbon cables W201 and W203 for loose connections or damage. Secure or replace cable(s) Loose Connections (Screw Terminals) Check connections on flexibar W216 between IGBT Module and ECM Inductor. The torque on the screws should be 9 Nm (80 lb-in). Check cable W219 from ECM Inductor to output connections. The torque on the Inductors should be 7.3 Nm (65 lb-in). Open the generator junction box and check connections. Tighten wire connections per instructions. Short Circuit Exists. With the power off, open the generator box and measure the resistance between A, B, and C Phases with reference to a Chassis ground. Normally Each should measure more than 600 KOhms. Isolate the short condi- tion to the Stator or the ECM. To isolate the short condition to a single component, disconnect the 3 wires A, B and C Phases from the generator terminal block, and repeat the above test. If the short condi- tion is found in the Generator, then replace the Engine. If the short condi- tion leads to the ECM, then replace the faulty part in the ECM. (Continued on next page) Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 10-10 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
