Text from PDF Page: 007

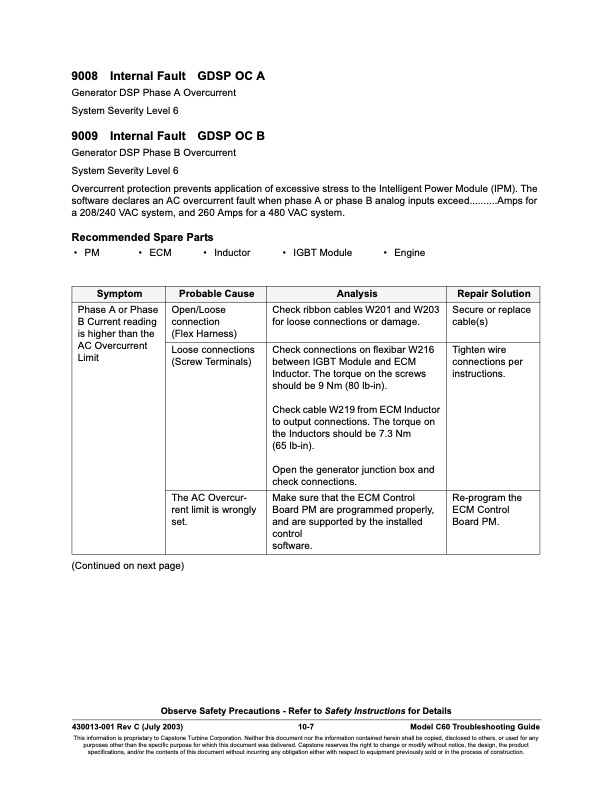

9008 Internal Fault GDSP OC A Generator DSP Phase A Overcurrent System Severity Level 6 9009 Internal Fault GDSP OC B Generator DSP Phase B Overcurrent System Severity Level 6 Overcurrent protection prevents application of excessive stress to the Intelligent Power Module (IPM). The software declares an AC overcurrent fault when phase A or phase B analog inputs exceed..........Amps for a 208/240 VAC system, and 260 Amps for a 480 VAC system. Recommended Spare Parts • PM • ECM • Inductor • IGBT Module • Engine Symptom Probable Cause Analysis Repair Solution Phase A or Phase B Current reading is higher than the AC Overcurrent Limit Open/Loose connection (Flex Harness) Check ribbon cables W201 and W203 for loose connections or damage. Secure or replace cable(s) Loose connections (Screw Terminals) Check connections on flexibar W216 between IGBT Module and ECM Inductor. The torque on the screws should be 9 Nm (80 lb-in). Check cable W219 from ECM Inductor to output connections. The torque on the Inductors should be 7.3 Nm (65 lb-in). Open the generator junction box and check connections. Tighten wire connections per instructions. The AC Overcur- rent limit is wrongly set. Make sure that the ECM Control Board PM are programmed properly, and are supported by the installed control software. Re-program the ECM Control Board PM. (Continued on next page) Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 10-7 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 9000 FAULT CODES Generator Faults
