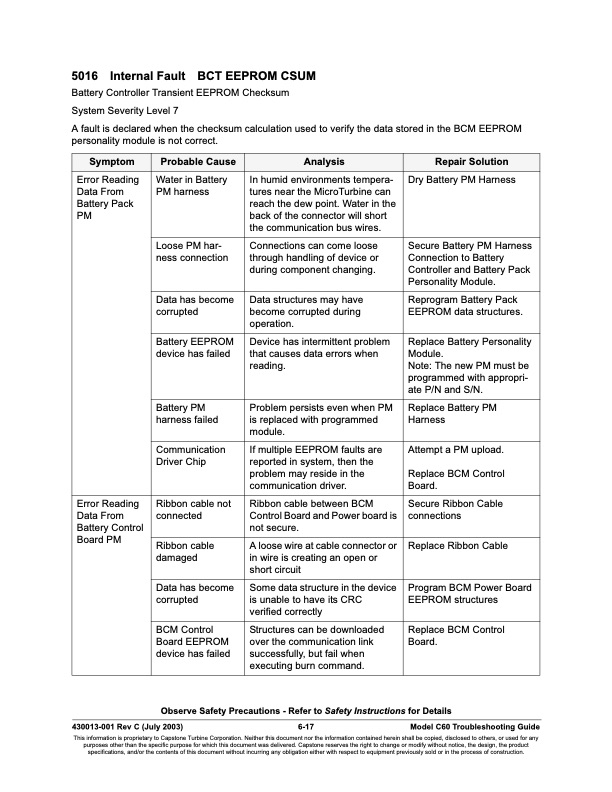

5016 Internal Fault BCT EEPROM CSUM Battery Controller Transient EEPROM Checksum System Severity Level 7 A fault is declared when the checksum calculation used to verify the data stored in the BCM EEPROM personality module is not correct. Symptom Probable Cause Analysis Repair Solution Error Reading Data From Battery Pack PM Water in Battery PM harness In humid environments tempera- tures near the MicroTurbine can reach the dew point. Water in the back of the connector will short the communication bus wires. Dry Battery PM Harness Loose PM har- ness connection Connections can come loose through handling of device or during component changing. Secure Battery PM Harness Connection to Battery Controller and Battery Pack Personality Module. Data has become corrupted Data structures may have become corrupted during operation. Reprogram Battery Pack EEPROM data structures. Battery EEPROM device has failed Device has intermittent problem that causes data errors when reading. Replace Battery Personality Module. Note: The new PM must be programmed with appropri- ate P/N and S/N. Battery PM harness failed Problem persists even when PM is replaced with programmed module. Replace Battery PM Harness Communication Driver Chip If multiple EEPROM faults are reported in system, then the problem may reside in the communication driver. Attempt a PM upload. Replace BCM Control Board. Error Reading Data From Battery Control Board PM Ribbon cable not connected Ribbon cable between BCM Control Board and Power board is not secure. Secure Ribbon Cable connections Ribbon cable damaged A loose wire at cable connector or in wire is creating an open or short circuit Replace Ribbon Cable Data has become corrupted Some data structure in the device is unable to have its CRC verified correctly Program BCM Power Board EEPROM structures BCM Control Board EEPROM device has failed Structures can be downloaded over the communication link successfully, but fail when executing burn command. Replace BCM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 6-17 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 5000 FAULT CODES Package Faults
