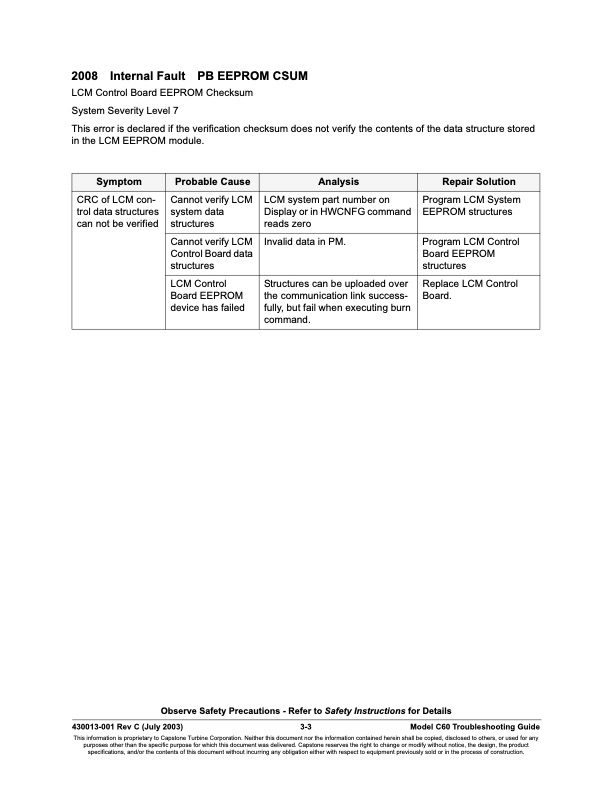

2008 Internal Fault PB EEPROM CSUM LCM Control Board EEPROM Checksum System Severity Level 7 This error is declared if the verification checksum does not verify the contents of the data structure stored in the LCM EEPROM module. Symptom Probable Cause Analysis Repair Solution CRC of LCM con- trol data structures can not be verified Cannot verify LCM system data structures LCM system part number on Display or in HWCNFG command reads zero Program LCM System EEPROM structures Cannot verify LCM Control Board data structures Invalid data in PM. Program LCM Control Board EEPROM structures LCM Control Board EEPROM device has failed Structures can be uploaded over the communication link success- fully, but fail when executing burn command. Replace LCM Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 3-3 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 2000 FAULT CODES Power Board Faults
