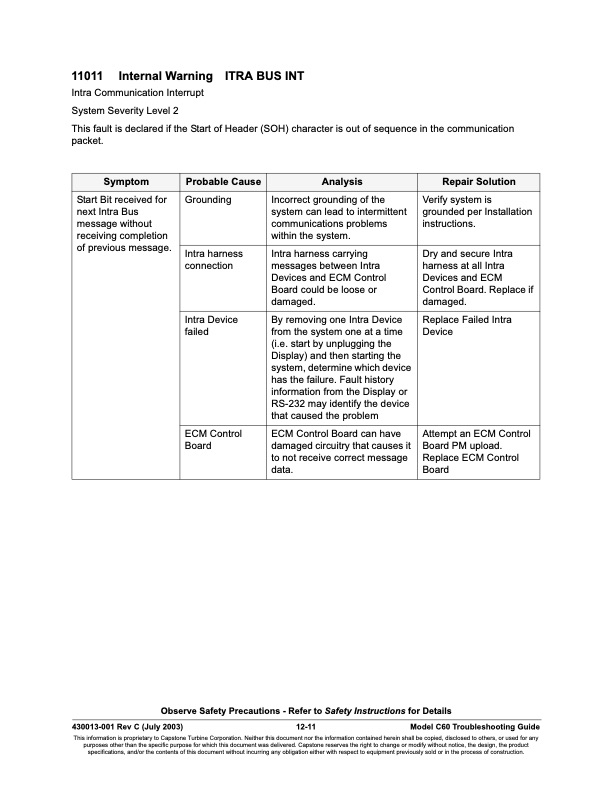

11011 Internal Warning ITRA BUS INT Intra Communication Interrupt System Severity Level 2 This fault is declared if the Start of Header (SOH) character is out of sequence in the communication packet. Symptom Probable Cause Analysis Repair Solution Start Bit received for next Intra Bus message without receiving completion of previous message. Grounding Incorrect grounding of the system can lead to intermittent communications problems within the system. Verify system is grounded per Installation instructions. Intra harness connection Intra harness carrying messages between Intra Devices and ECM Control Board could be loose or damaged. Dry and secure Intra harness at all Intra Devices and ECM Control Board. Replace if damaged. Intra Device failed By removing one Intra Device from the system one at a time (i.e. start by unplugging the Display) and then starting the system, determine which device has the failure. Fault history information from the Display or RS-232 may identify the device that caused the problem Replace Failed Intra Device ECM Control Board ECM Control Board can have damaged circuitry that causes it to not receive correct message data. Attempt an ECM Control Board PM upload. Replace ECM Control Board Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 12-11 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 11000 FAULT CODES Communications Faults
