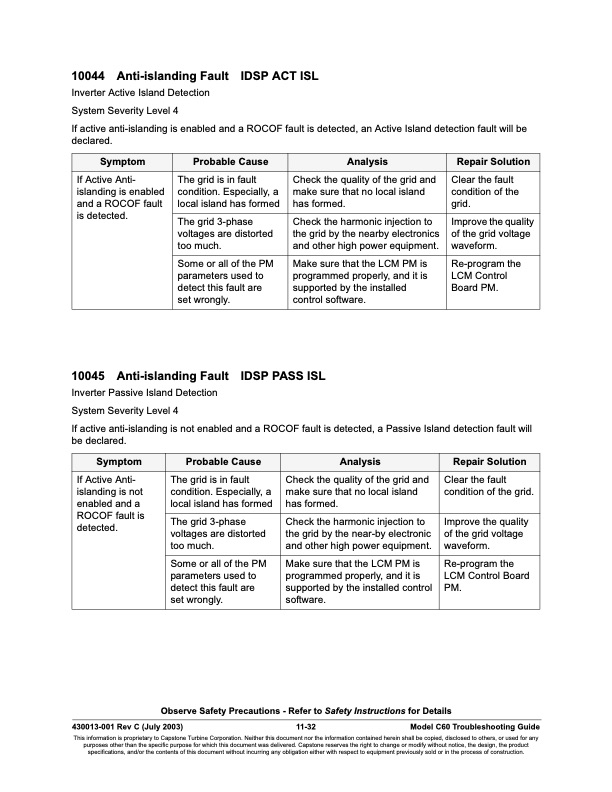

10044 Anti-islanding Fault IDSP ACT ISL Inverter Active Island Detection System Severity Level 4 If active anti-islanding is enabled and a ROCOF fault is detected, an Active Island detection fault will be declared. Symptom Probable Cause Analysis Repair Solution If Active Anti- islanding is enabled and a ROCOF fault is detected. The grid is in fault condition. Especially, a local island has formed Check the quality of the grid and make sure that no local island has formed. Clear the fault condition of the grid. The grid 3-phase voltages are distorted too much. Check the harmonic injection to the grid by the nearby electronics and other high power equipment. Improve the quality of the grid voltage waveform. Some or all of the PM parameters used to detect this fault are set wrongly. Make sure that the LCM PM is programmed properly, and it is supported by the installed control software. Re-program the LCM Control Board PM. 10045 Anti-islanding Fault IDSP PASS ISL Inverter Passive Island Detection System Severity Level 4 If active anti-islanding is not enabled and a ROCOF fault is detected, a Passive Island detection fault will be declared. Symptom Probable Cause Analysis Repair Solution If Active Anti- islanding is not enabled and a ROCOF fault is detected. The grid is in fault condition. Especially, a local island has formed Check the quality of the grid and make sure that no local island has formed. Clear the fault condition of the grid. The grid 3-phase voltages are distorted too much. Check the harmonic injection to the grid by the near-by electronic and other high power equipment. Improve the quality of the grid voltage waveform. Some or all of the PM parameters used to detect this fault are set wrongly. Make sure that the LCM PM is programmed properly, and it is supported by the installed control software. Re-program the LCM Control Board PM. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-32 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
PDF Search Title:
Overview SERIES 10000 FAULT CODES Inverter FaultsOriginal File Name Searched:
C60_11_10000 Faults.pdfDIY PDF Search: Google It | Yahoo | Bing
