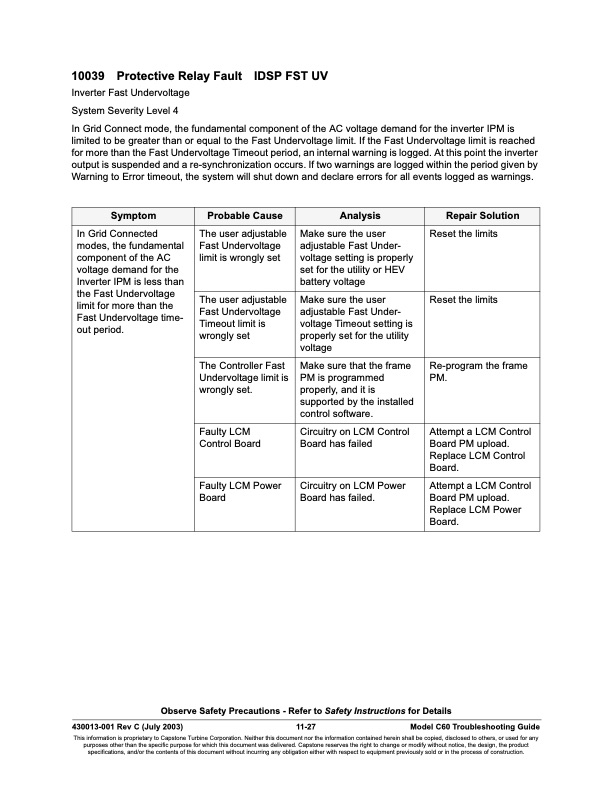

10039 Protective Relay Fault IDSP FST UV Inverter Fast Undervoltage System Severity Level 4 In Grid Connect mode, the fundamental component of the AC voltage demand for the inverter IPM is limited to be greater than or equal to the Fast Undervoltage limit. If the Fast Undervoltage limit is reached for more than the Fast Undervoltage Timeout period, an internal warning is logged. At this point the inverter output is suspended and a re-synchronization occurs. If two warnings are logged within the period given by Warning to Error timeout, the system will shut down and declare errors for all events logged as warnings. Symptom Probable Cause Analysis Repair Solution In Grid Connected modes, the fundamental component of the AC voltage demand for the Inverter IPM is less than the Fast Undervoltage limit for more than the Fast Undervoltage time- out period. The user adjustable Fast Undervoltage limit is wrongly set Make sure the user adjustable Fast Under- voltage setting is properly set for the utility or HEV battery voltage Reset the limits The user adjustable Fast Undervoltage Timeout limit is wrongly set Make sure the user adjustable Fast Under- voltage Timeout setting is properly set for the utility voltage Reset the limits The Controller Fast Undervoltage limit is wrongly set. Make sure that the frame PM is programmed properly, and it is supported by the installed control software. Re-program the frame PM. Faulty LCM Control Board Circuitry on LCM Control Board has failed Attempt a LCM Control Board PM upload. Replace LCM Control Board. Faulty LCM Power Board Circuitry on LCM Power Board has failed. Attempt a LCM Control Board PM upload. Replace LCM Power Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 11-27 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
