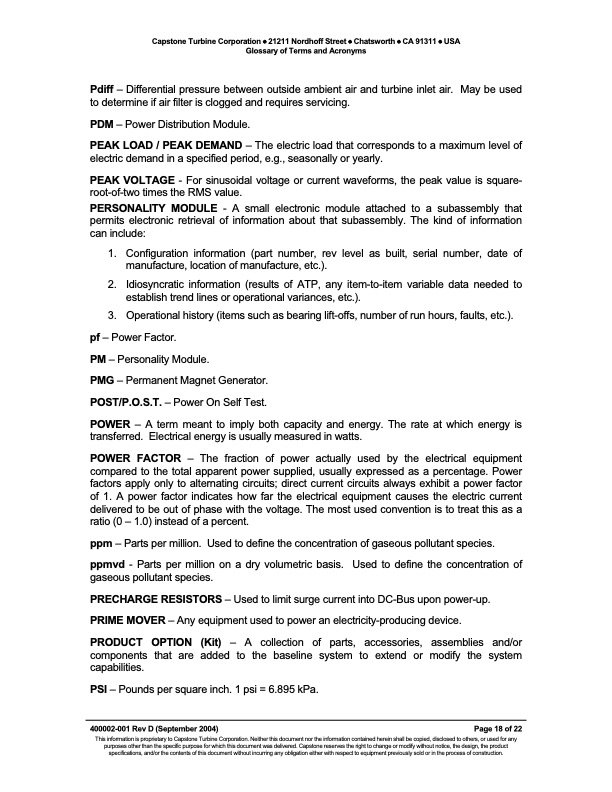

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Glossary of Terms and Acronyms Pdiff – Differential pressure between outside ambient air and turbine inlet air. May be used to determine if air filter is clogged and requires servicing. PDM – Power Distribution Module. PEAK LOAD / PEAK DEMAND – The electric load that corresponds to a maximum level of electric demand in a specified period, e.g., seasonally or yearly. PEAK VOLTAGE - For sinusoidal voltage or current waveforms, the peak value is square- root-of-two times the RMS value. PERSONALITY MODULE - A small electronic module attached to a subassembly that permits electronic retrieval of information about that subassembly. The kind of information can include: 1. Configuration information (part number, rev level as built, serial number, date of manufacture, location of manufacture, etc.). 2. Idiosyncratic information (results of ATP, any item-to-item variable data needed to establish trend lines or operational variances, etc.). 3. Operational history (items such as bearing lift-offs, number of run hours, faults, etc.). pf – Power Factor. PM – Personality Module. PMG – Permanent Magnet Generator. POST/P.O.S.T. – Power On Self Test. POWER – A term meant to imply both capacity and energy. The rate at which energy is transferred. Electrical energy is usually measured in watts. POWER FACTOR – The fraction of power actually used by the electrical equipment compared to the total apparent power supplied, usually expressed as a percentage. Power factors apply only to alternating circuits; direct current circuits always exhibit a power factor of 1. A power factor indicates how far the electrical equipment causes the electric current delivered to be out of phase with the voltage. The most used convention is to treat this as a ratio (0 – 1.0) instead of a percent. ppm – Parts per million. Used to define the concentration of gaseous pollutant species. ppmvd - Parts per million on a dry volumetric basis. Used to define the concentration of gaseous pollutant species. PRECHARGE RESISTORS – Used to limit surge current into DC-Bus upon power-up. PRIME MOVER – Any equipment used to power an electricity-producing device. PRODUCT OPTION (Kit) – A collection of parts, accessories, assemblies and/or components that are added to the baseline system to extend or modify the system capabilities. PSI – Pounds per square inch. 1 psi = 6.895 kPa. 400002-001 Rev D (September 2004) Page 18 of 22 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | MicroTurbine systems Glossary of Terms and Acronyms
